MINE MEDIA Q8S : LIVE BONDING ENCODER

R37 537.74
(R43 168.40 incl VAT)
Short description:

The Q8S Live Streaming Bonding Video Encoder from MiNE Media adds redundancy and reliability to your remote video streaming setup by sending your signal over bonded cellular networks

02-STR-BON-011

Elevate your live streaming capabilities with the MINE MEDIA Q8S : LIVE BONDING ENCODER. This professional video encoder is designed for seamless, high-quality live broadcasts. The Mine Q8S utilizes cutting-edge 5G technology and multi-network bonding, supporting up to 6 network connections, to ensure reliable and stable streaming. Say goodbye to dropped streams and hello to uninterrupted content delivery. Perfect for content creators, broadcasters, and live event coverage, this versatile encoder features HDMI/SDI input, multi-protocol support (RTMP, RTSP, SRT), and vertical mode streaming for optimized viewing on any platform. Capture and share your content with exceptional clarity.



Key Features

  • 5G Live Streaming: Experience the speed and reliability of 5G for your live broadcasts.
  • Multi-Network Bonding: Bond up to 6 networks for enhanced stability.

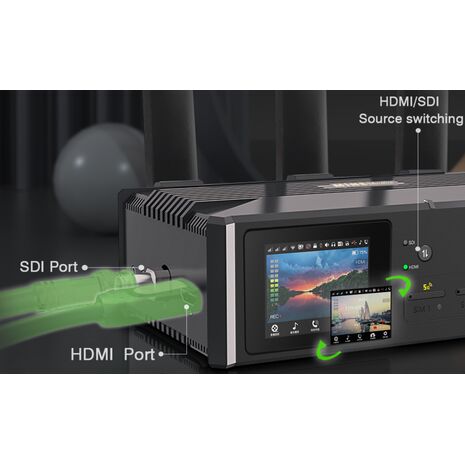

  • HDMI/SDI Encoder: Flexible input options with HDMI and SDI connections.

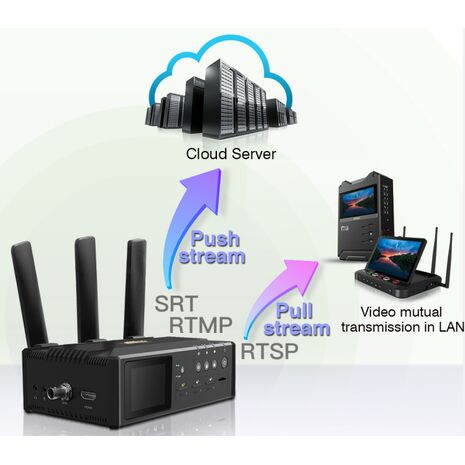

  • RTMP, RTSP, SRT Streaming: Supports industry-standard streaming protocols.
  • Vertical Mode Capability: Switch between horizontal and vertical streaming.

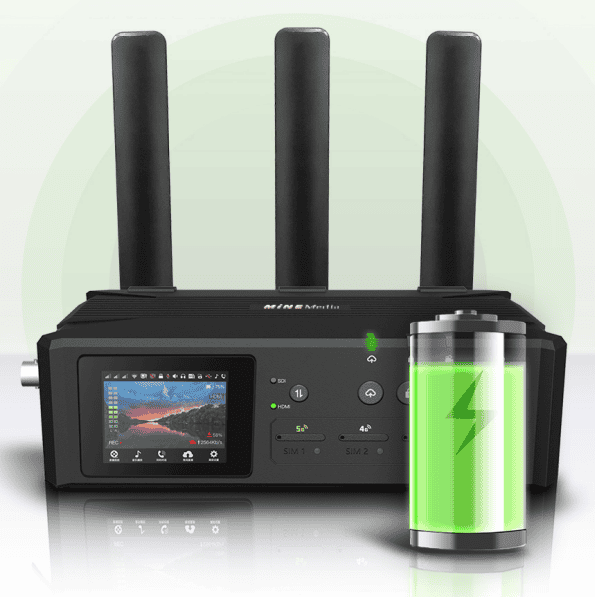

  • Long Battery Life: Stream for 4-6 hours on a single charge.
  • Portable Live Streaming Solution: Compact and easy to transport.
Model Mine Q8S
Name 5G/4G Bonding Encoder
Video Input HDMI + 3G-SDI
Video Compression Format H.264/H265
Encoding Mode H.265 Main profile/Base line
H.264 High Profile/Main profile/Base line
Video Input Format 1080p: 1920x1080@25p/30p/50p/60p
1080i: 1920x1080@50i/60i
720p: 1280x720@25p/30p/50p/60p/120p
Live Streaming Resolution 1920x1080, 1280x720, 960x540, 848x480, 640x360, 480x270 (Frame rate adjustable)

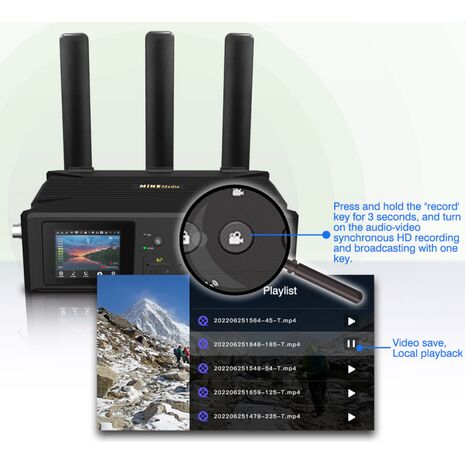

Recording Resolution Maximum support 1080p60 (Frame rate adjustable)
Audio Compression Standard AAC
Audio Sample Rate 44.1K/48K
Audio Input 3.5mm dual-channel external audio input
Audio Format MP3
Audio Output 3.5mm dual-channel audio monitoring
LCD Size 2-inch HD display
Screen Characteristics Touch Screen
5G Built-in 5G module * 1 (Optional)
4G Built-in 4G module * 2 Or *3
Wi-Fi Support 2.4G/5.8G dual-band Wi-Fi access
Ethernet Gigabit network port

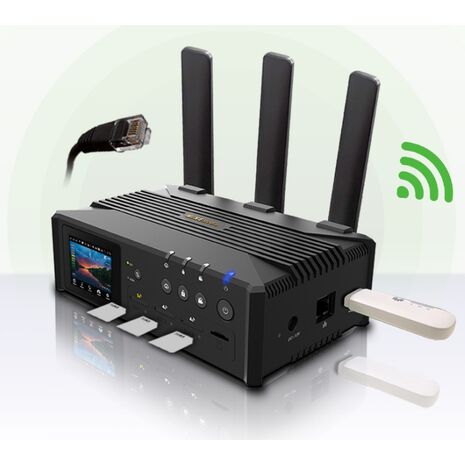

USB External 4G dongle, USB network card can be used
Stream Protocol Support RTMP(s), SRT, RTSP
Storage Function Support TF card (maximum 256G)
Video Format MP4 (H.265/H.264+AAC)
File System FAT32; exFAT
Device System Linux
M Live APP Above Android 5 & iOS 9
Power DC12V=3A
Max Power Consumption 18W
Battery Capacity 7.4V/7200mAh
Dimension (mm) 162mm * 102mm * 53.4mm
Weight 735g
Work Temperature 0℃--40℃
Working Humidity Less than 95% (no condensation)
Storage Temperature 5℃--40℃
