MINE MEDIA R8 : 4G SRT STREAMING SWITCHER

R62 104.26
(R71 419.90 incl VAT)
Short description:

4G Bonding Video Switcher

02-STR-BON-006

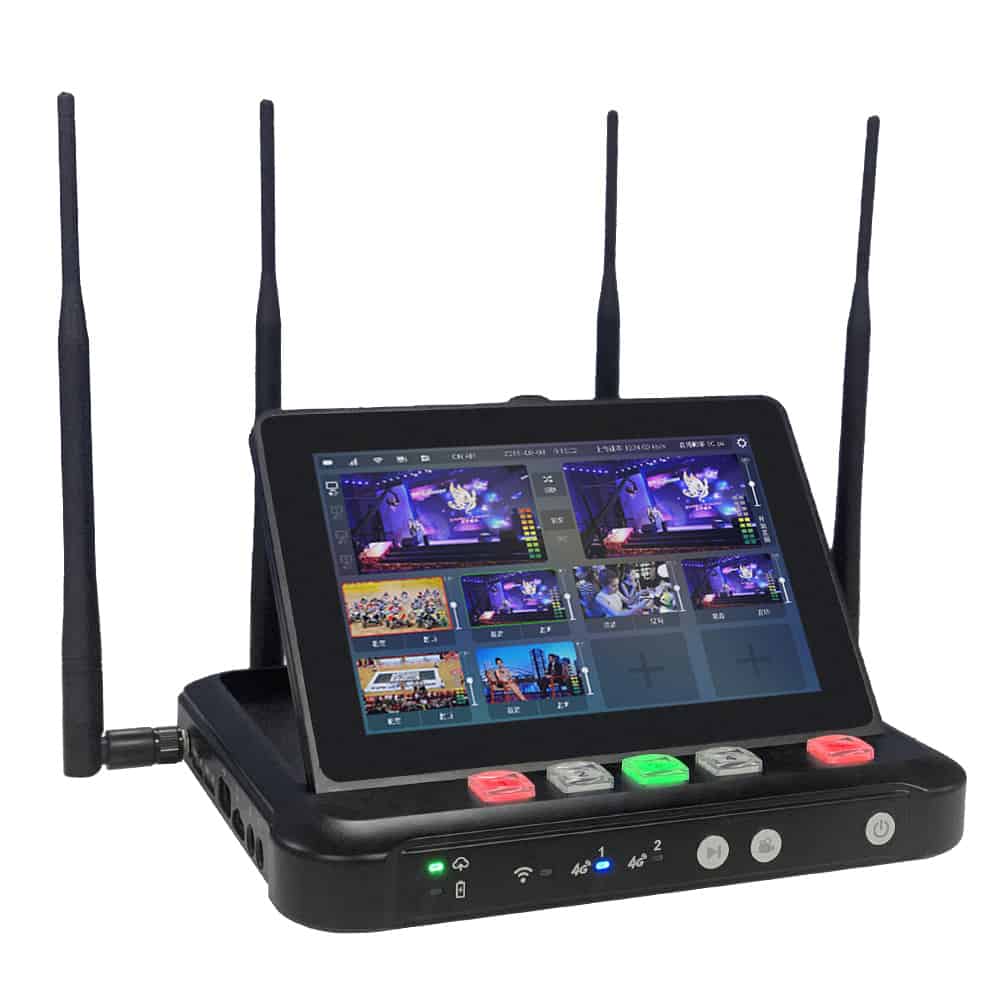

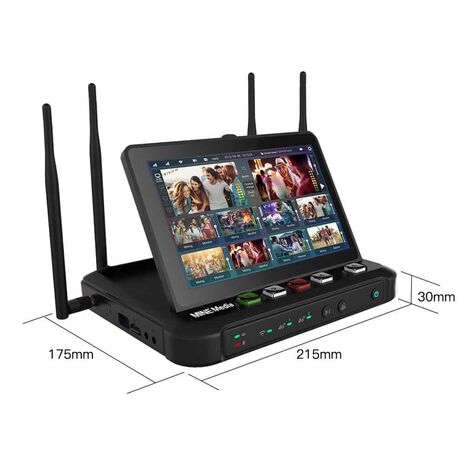

Mine R8 4G Bonding Video Switcher. R8 is a 7-inch touch screen and portable video switcher, which supports 2 HDMI/2 SDI and 4
RTMP multi-camera switching, monitoring, mixing, tuning, recording, logo and subtitle online to meet the needs of various on-site
activities, and bonds up to 5 network links at the same time, including supporting 2 x 4 G LTE, 1 x USB Dongle, Wifi and Ethernet.
Built-in rechargeable battery provides continuous flow for up to 3-4 hours.



Mine-R8 4G Bonding Video Switcher

  • 7 inch Touch Screen

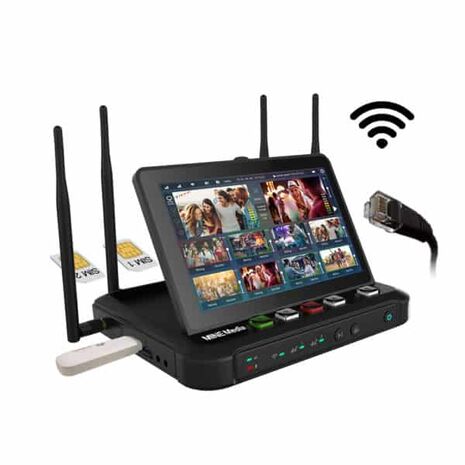

  • 2 SIM/WiFi/Ethernet/USB Dongle
  • Video Switchable
  • Portable to carry

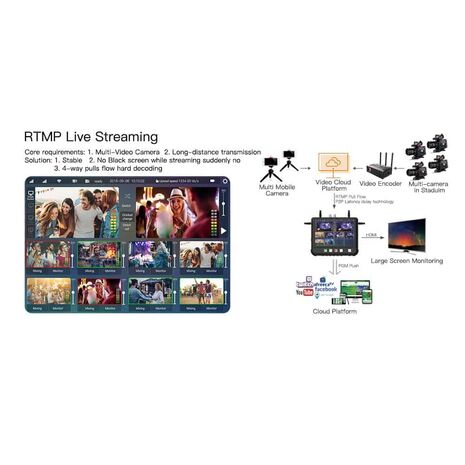

  • Portable Wireless 4G Streaming Video Switcher, Video Switchable, HD live video streaming through RTMP/RTMPS/RTSP directly to Facebook, YouTube, Twitter, etc.
  • 264 (RTMP/RTMPS), H.265 (RTSP), support 1080p60/50/30/25; 1080i60/50; 720p60/50/30/25

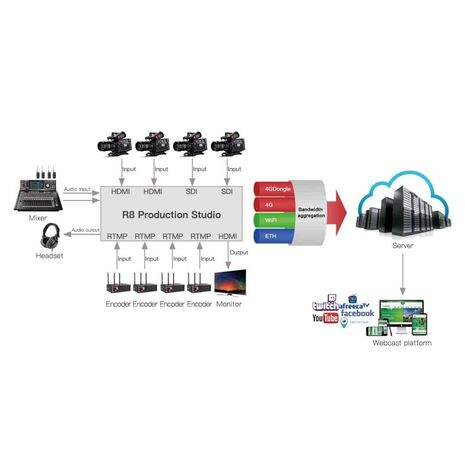

  • Simultaneously bond up to 5 network links including support for 2* 4G LTE cellular or 1* USB Dongle, Wifi and Ethernet.
  • Internal rechargeable battery provides up to 3-4 hours of continuous streaming.



ADVANTAGES

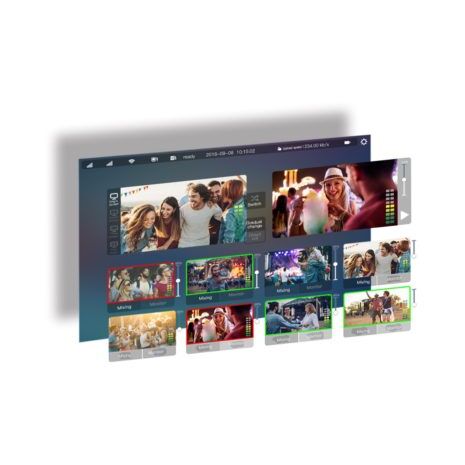

  • PiP live streaming  Click PiP icon in the upper left corner directly, you can move any singal source to PiP window position, and also can move or zoom the PiP window.
  • Up to 3 pictures can be overlayed, two group texts, time display, scoreboard display, can be used in various live events. Long press the icon of host/visiting team can remove out

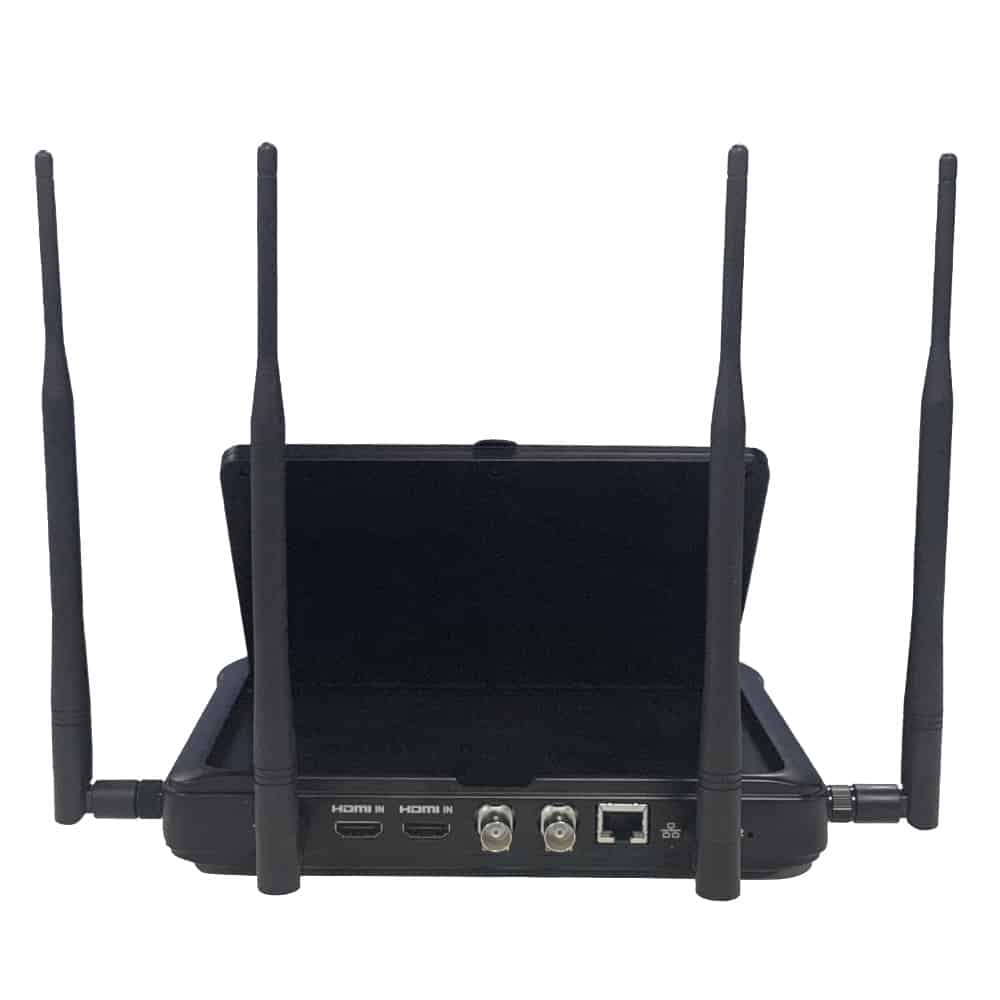

  • 2HDMI 2SDI and 4 RTMP  R8 support multi-camera switching, monitoring, mixing, tuning, recording, logo, subtitle online to meet the needs of various live events.

Specification



Audio

Model

Mine R8



Input

3.5mm External Audio Input

Name

Multi-SIM Bonding Video Switcher



Output

3.5mm Audio Monitoring

Video Input

2 HDMI; 2 SDI; 4 RTMP



Built-in

Built in Speaker

Control Mode

7 inch Touch-screen; M Live App



Encoding Mode



Recording Storage



Video compression format

H.264/H.265+

Storage Mode

TF Card



Audio compression standard

AAC

TF Storage

Max 128G



Recording Format

MP4

Power



Audio Input Format

8kHz~192kHz

Power Charge

12V, 3A



Video Input Format

480i:720×480i@59.94i

576i:720×576@50i
720p:1280×720@25p/30p/50p/60p/120p
1080p:1920×1080@50i/60i
1080p:1920×1080@25p/30p/50p/60p

Working Duration

4 hours



Live resolution

480×270; 640×360;

848×480; 960×540;
1280×720;1920×1080          (Bi-rate can adjustable)

Battery-built in

7.4V/8000mAh



Recording resolution

Max 1080p60

Structure



Transmission



Package

35*30*15(CM)



TS Protocols

RTMP/RTSP/SRT/HLS

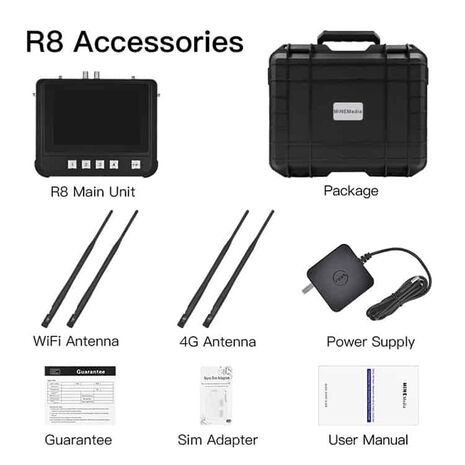

  • 1 x R8 4G Bonding Video Switcher
  • 1 x Protective suite case
  • 2 x WiFi Antenna
  • 2 x 4G Antenna
  • 1 x Power adapter
  • 1 x Manual
