RETEKESS TR508 : FM TRANSMITTER LOW POWER

R2 608.70
(R3 000.01 incl VAT)
List Price: R3 478.26
Brand:
Write a review on this product
Short description:

FM Transmitter Low Power Broadcast Station

01-MON-FMT-004

Retekess FM Transmitter Low Power Broadcast Radio Station



Key features

  • Transmission radius of approx. 300-400m (line of sight)

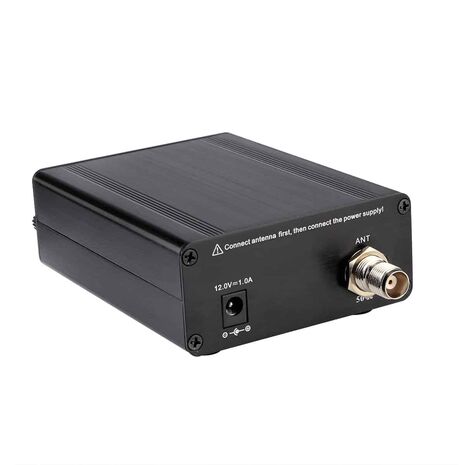

  • Low power complies with part 15 of FCC rule.

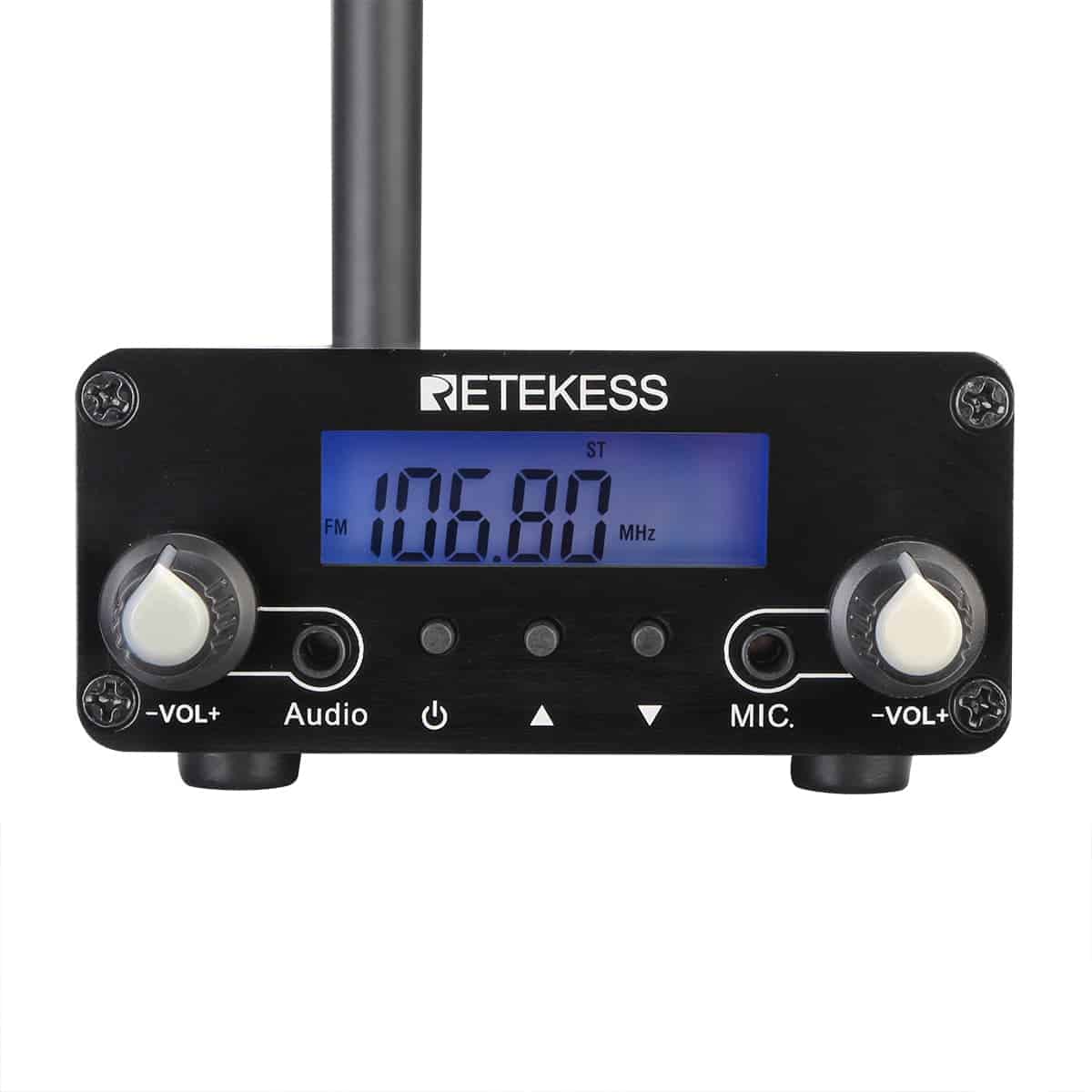

  • MIC volume.

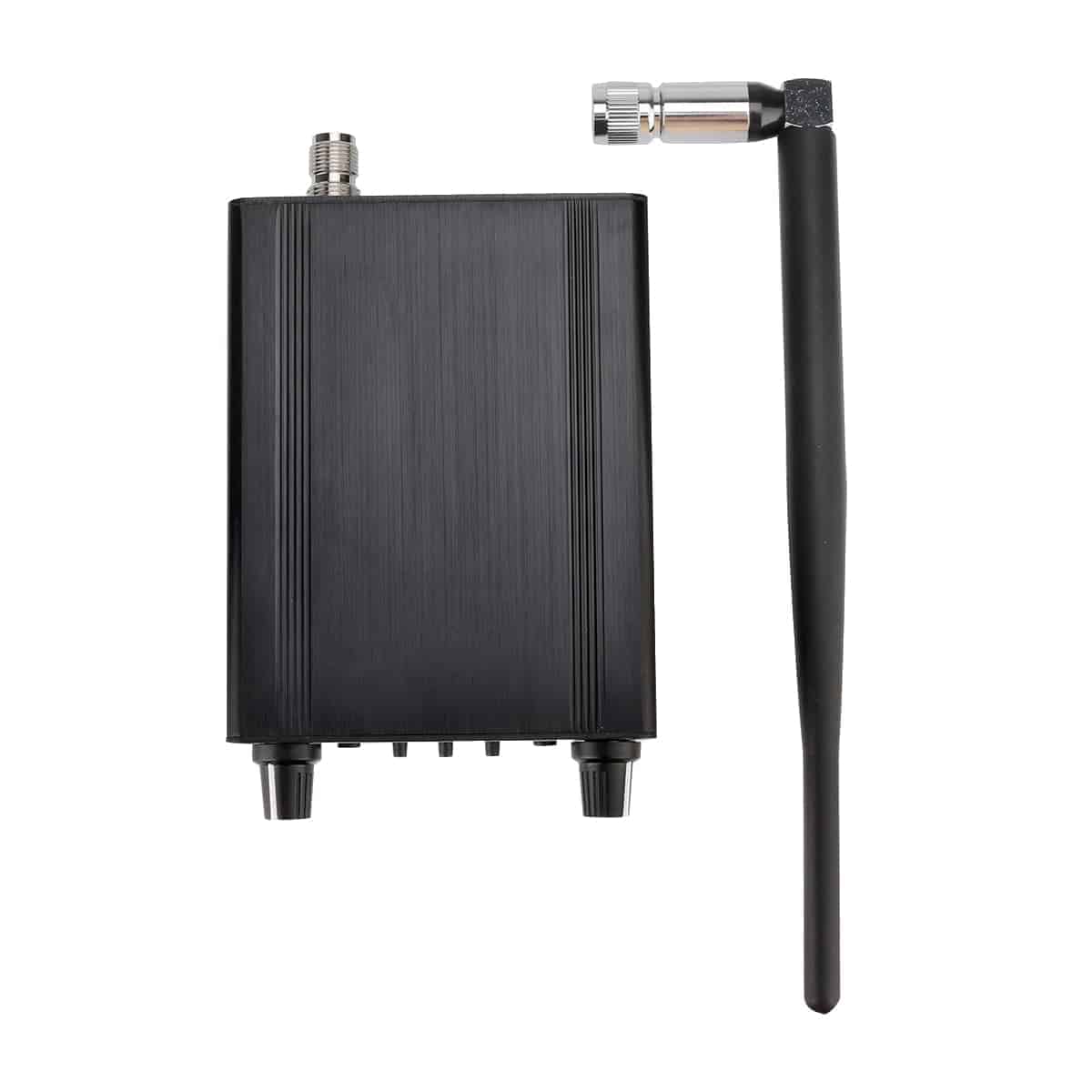

  • Removable antenna.
  • Stereo voice, clear sound.
  • Stable signal, little affected by the outside.
  • Lightweight and excellent heat dissipation.
  • Changed power easily, from 100mW to 500mW.
  • The motherboard adopts a new generation of integrated special-purpose NC FM PLL stereo wireless transmission chip BH1415 from Japan ROHM company, and has built-in PLL frequency phase-locked loop, audio pre-emphasis, limiting and low-pass filter circuit, which can achieve high fidelity and high stable signal transmission.



* excludes the iPhone

Working voltage 11~13V DC（Rated voltage 12 v）
Working current <300mA
Frequency domain 76~108Mhz
Frequency stability ±10PPM
Stepped frequency 100KHZ
The operating temperature of the environment -10℃~50℃
Output impedance 50Ω
Rf power output range H:500mW (L:100mW)
Harmonic and noise radiation ≤－60dB
Audio distortion <0.30%
Frequency response 20HZ~15000HZ
Preemphasis delay 50us
Degree of separation ≥40 dB
Input level ≤-10 dBV
Modulation frequency deviation ±75KHZ
SNR(Signal to Noise Ratio) ≥65 dB
Machine Size L:113mm;W:88mm;H:39mm
Machine weight 269g

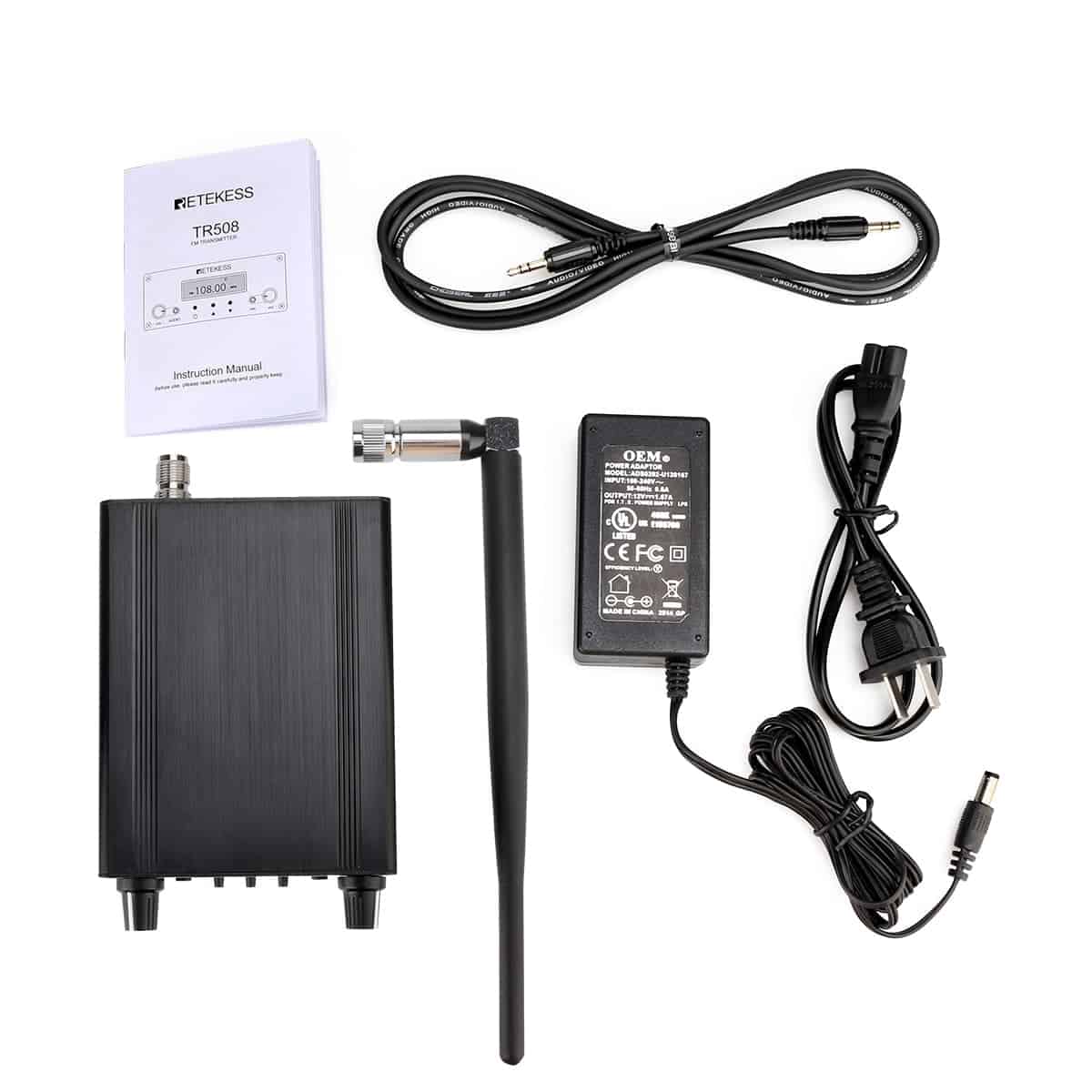

  • 1 x TR508 FM Transmitter
  • 1 x 100~240V Power Supply
  • 1 x 3.5mm Audio Cable
  • 1 x Antenna
