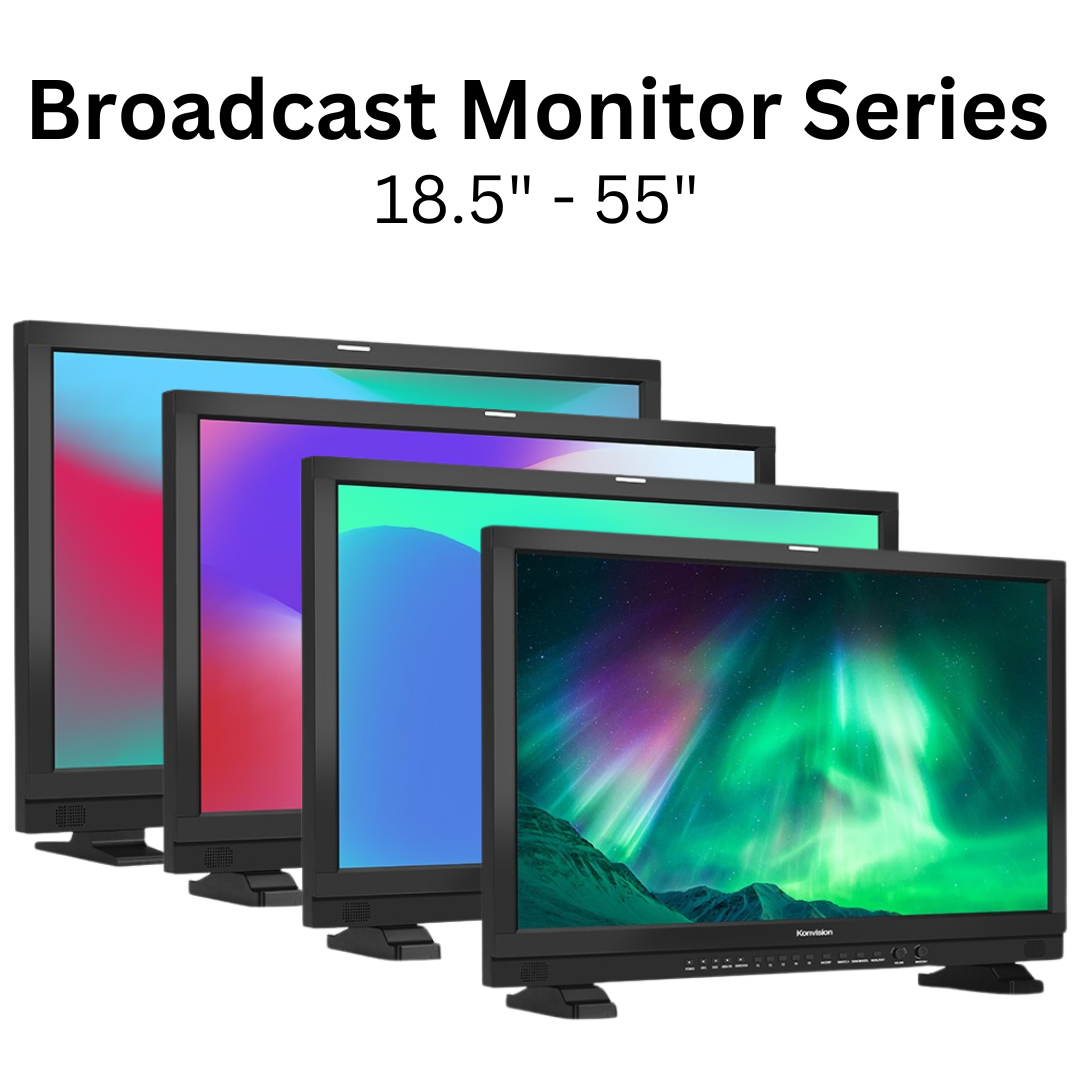

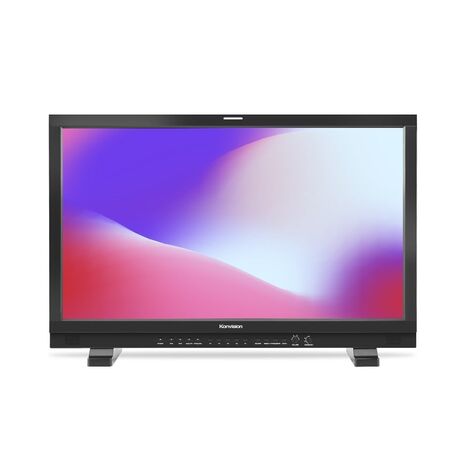

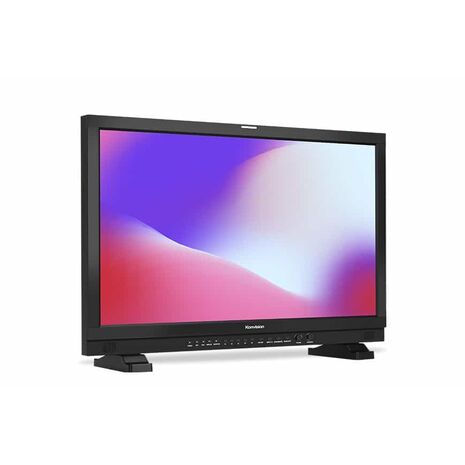

The KONVISION : BROADCAST MONITOR SERIES is a range of multi-functional monitors that support full video formats. They provide waveform, vectorscope, audio meter and other professional broadcast features. Efficient features make it a nice choice for post-production, and editing applications.

• See the option dropdown menu to select one of the different models in the range
• See the attachments tab for full specification sheets of each model

Monitors In The Series

• KVM-1951W is a 18.5-inch multi-functional monitor that supports full video formats. It provides waveform, vectorscope, audio meter and so on professional broadcast features. Efficient features make it a nice choice for post-production, and editing applications.
• KVM-2250W is a multi-functional monitor that supports full video formats including 2K and 3Gbs SDI 4:4:412 Bit signals. Efficient features make it a nice choice for production, post-production and editing, as well as studio and OB truck.
• KVM-2451W is a 24-inch multi-functional monitor that supports full video formats. It provides waveform, vectorscope, audio meter and so on professional broadcast features. Efficient features make it a nice choice for colour grading, production, post-production and editing, as well as studio and OB truck.
• KVM-2450W is a 24-inch multi-functional monitor that supports full video formats. It provides waveform, vectorscope, audio meter and so on professional broadcast features. Efficient features make it a nice choice for colour grading, production, post-production and editing, as well as studio and OB truck.
• KVM-3250W is equipped with an FHD resolution IPS LCD panel, high brightness and contrast ratio,2x3G-SDI inputs and outputs with waveform, vectors, pixel measurement and other full broadcast features, PIP and PBP enabling two signals to be displayed on screen at the same time. Super slim design offers excellent solutions for studio, broadcast, and video walls as well as high-end video conference applications.
• KVM-4250W is equipped with an FHD resolution IPS LCD panel, high brightness and contrast ratio, 2x3G-SDI inputs and outputs with waveform, vectors, pixel measurement and other full broadcast features, PIP and PBP enabling two signals to be displayed on screen at the same time. Super slim design offers excellent solutions for studio, broadcast, and video walls as well as high-end video conference applications.
• KVM-5550W is equipped with an FHD resolution IPS LCD panel, high brightness and contrast ratio, 2x3G-SDI inputs and outputs with waveform, vectors, pixel measurement and other full broadcast features, PIP and PBP enabling two signals to be displayed on screen at the same time. Super slim design offers excellent solutions for studio, broadcast, and video walls as well as high-end video conference applications.

___________________________________________________

3D LUT Colour Calibration

Compatible with ColourSpace and Calman calibration software, Konvision monitors apply K10-A probe(professional level) to achieve a precise color. Monitor's also workable with universal colorimeters including CA210, CA310, CS200, CR100, CR250, X-Rite i1 Display.

Darkness Check

Increasing the brightness and contrast ratio in the dark areas, Darkness Check can show more shadow details of the input signal. Darkness Check can be used for double-checking the shadow detail of the dark areas to avoid any missing information.

Part Zoom In

Part Zoom In function allows the user to zoom in any part of the picture, to watch picture details more clearly, and assist for focus.

PIP & PBP

Images of two SDI signals manage to display on screen at the same time. It also supports PIP and PBP for one SDI signal with the other signal (Video/Component/DVI/VGA). The two images can swap freely between each other.

Pixel Measurement

Select any single pixel or block of pixels by using a movable cross-hair to obtain real-time readouts of the Y&RGB values of the selected position. This function is to get real-time Y&RGB measurement values of any point of the input signals and compare the values of any two points.

Waveform(Alarm),Vectors

SDI supports Waveform, Vectorscope, Histogram and manage to be displayed on screen at the same time.When luminance reaches or exceeds the preset value, the over-exposure areas will be red marked (Waveform Alarm).

False Color

Check the exposure of the image. Blue, cyan, green, yellow, orange and red colours are displayed in turn to show the luminance or brightness values of the image from darkest to brightest, enabling an achievement of proper exposure without applying external test equipment.

Focus Assist

Focus assist aids the camera operator in obtaining the sharpest possible picture, it will mark with red colour where the sharp edges appear on the screen.

Zebra

Display the overexposed areas(too bright) of the image with zebra stripes, aids the camera operator in controlling the luminance, to avoid overexposure. This feature is very effective for proper exposure.

Picture Flip

The horizontal picture flip function allows negative images and is very useful in the studios/virtual studios, such as weather forecasts, news and other programs, etc.
