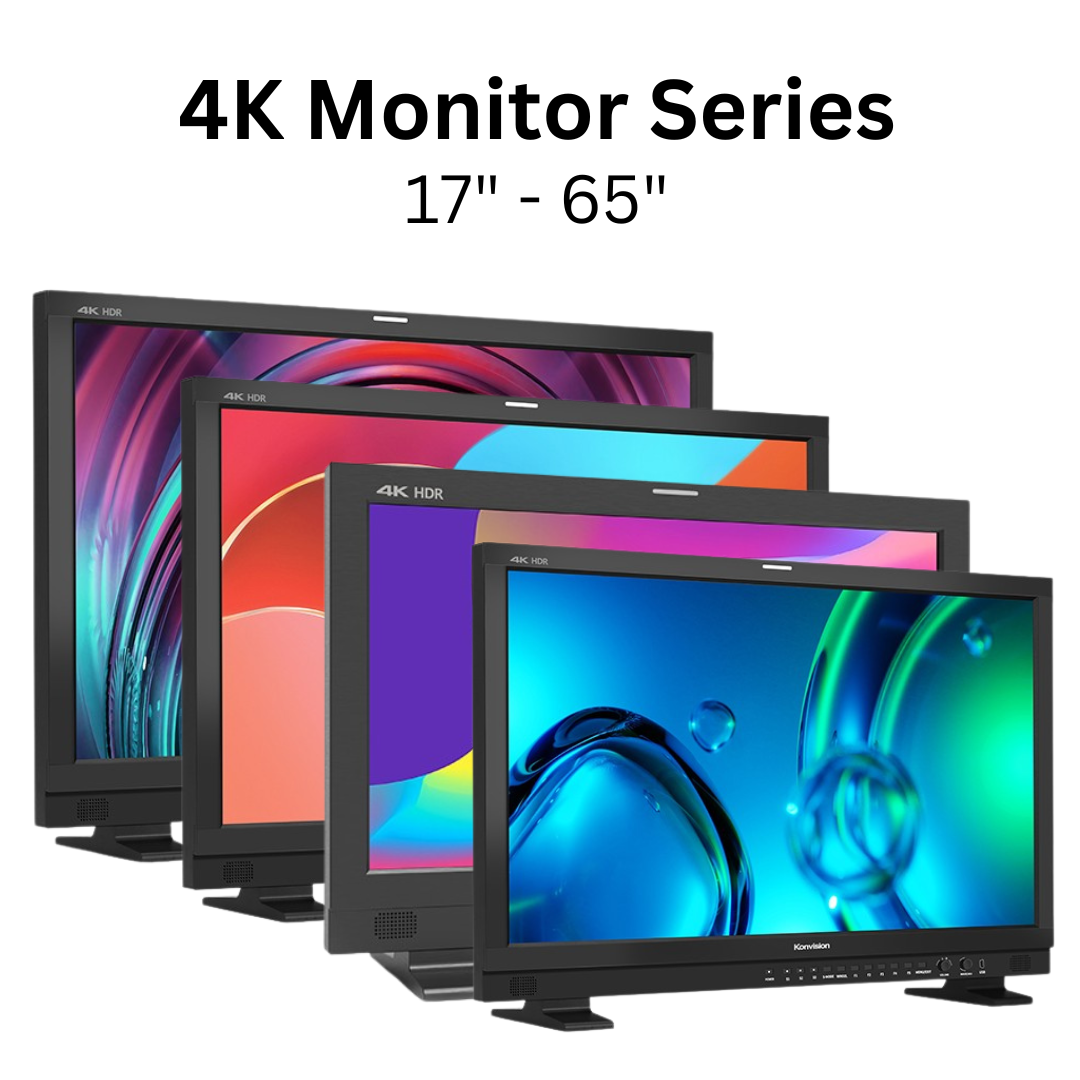

The KONVISION : 4K MONITOR SERIES is a range of 4K HDR monitors that support a variety of professional broadcasting features such as waveform, histogram, and Darkness Check, making them a brilliant monitor in 4K production workflows.

• See the option dropdown menu to select one of the different models in the range
• See the attachments tab for full specification sheets of each model

Monitors In The Series

• KUM-1710W is a 17'' 4K HDR monitor with 2x12G-SDI inputs and outputs, compatible with 6G/3G/HD/SD-SDI signals. Supporting a variety of professional broadcasting features such as waveform, histogram, and Darkness Check, making KUM-1710W a brilliant 17-inch monitor in 4K production workflow.
• KUM-1810D is a 18.4'' 4K HDR monitor with 2x12G-SDI inputs and outputs, compatible with 6G/3G/HD/SD-SDI signals. Supporting a variety of professional broadcasting features such as waveform, histogram, and Darkness Check, making KUM-1810D a brilliant 17-inch monitor in 4K production workflow.
• KUM-2410W is a 24" 4K HDR monitor equipped with 2x12G-SDI inputs and outputs. Quad-link supports up to 4096x2160 60p signal. 4K HDR display supports PQ(ST2084) and HLG, a cost-effective 4K monitor for a variety of 4K and FHD workflows.
• KUM-2710W is a 27" 4K HDR monitor which is equipped with 2x12G-SDI inputs and outputs. Quad-link supports up to 4096x2160 60p signal. The 4K HDR display supports PQ(ST2084) and HLG, a cost-effective 4K monitor for a variety of 4K and FHD workflows.
• KUM-2710D is a 27'' UHD(3840x2160) HDR reference monitor with 1000 Nits brightness. 10Bit IPS panel covers up to 98% P3 wide colour gamut. It supports 2x12G/6G-SDI and 2x3G/HD-SDI signal inputs, quad split mode supports various signal formats on split window. HDR displays works with PQ and HLG. KUM-2710D is a suitable 27-inch size, especially for production.
• KUM-2710H is a 27'' UHD(3840x2160) HDR reference monitor with 1000 Nits brightness. 10Bit IPS. It supports 2x12G/6G-SDI and 2x3G/HD-SDI signal inputs, quad split mode supports various signal formats on split window. HDR displays work with PQ and HLG. KUM-2710H is a suitable 27-inch size, especially for production.
• KUM-3110H is a 32'' 4K HDR monitor with 1000nits brightness. Supporting wide color gamuts such as Rec709, DCI-P3, Rec 2020 etc. HDR display supports PQ and HLG. KUM-3110H is a good choice for 4K workflows.
• KUM-3110S is a 32-inch OLED 4K HDR reference monitor with 2x12G-SDI inputs/outputs. 12G SDI single-link supports up to 4K signal. Its color gamut can reach more than 99% of DCI-P3 and 80% of BT2020. With 1,000,000:1 ultra-high contrast ratio and 0.0005 nit truer, deeper black, it can reproduce incredible black details and can be used for up to 30,000 hours. It is a good choice for professional and high-quality 4K/8K colour grading, postproduction etc.
• KUM-3110W is a 32'' 4K HDR monitor with various of professional features. Supporting wide color gamuts such as Rec709, DCI-P3, Rec 2020 etc. HDR display supports PQ and HLG. KUM-3110W is a good choice for 4K workflows.
• KUM-4310W is a 43'' 4K HDR monitor with 12G-SDI, 3G-SDI signal input. Quad split mode supports different signal formats on split windows. Build-in waveform, vectorscope, histogram with briliant picture quality make KUM-4310W a nice option for 4K OB Van, studio and other applications.
• KUM-5510W is a 55'' 4K HDR monitor that supports not only a single 4K picture, also with unique quad split mode function, supporting 4 different signal formats 1080p/1080i/720p/1080p on split windows. 55'' 4K HDR monitor is perfect for 4K news rooms, control rooms main media center and so on.
• KUM-6510W is a 65'' 4K HDR monitor supports not only single 4K picture, also with unique quad split mode function, support 4 different signal format 1080p/1080i/720p/1080p on split windows. 65'' 4K HDR monitor is perfect for 4K news rooms, control rooms main media center and so on.

___________________________________________________

4K Signal, Native 4K Resolution

Native 4K resolution, 4K 12G-SDI single link supports utmost 4096 x 2160 60p format, 2 x 12G-SDI signal inputs and outputs (auto-detected 6G/3G/HD/SD-SDI), 1xSDI SFP + module input cage.

Motion-Adaptive Interlace to Progressive

Realizing quick response of the fast moving image, avoids duzzy, saw tooth and other problems, ensures clearer and smoother image, well-satisfied high-end demanding workflows such as live sports, camera shaking and rolling subtitles etc.

3D LUT Color Calibration

Compatible with ColourSpace and Calman calibration software, Konvision monitors apply K10-A probe(professional level) to achieve a precise color. Monitor's also workable with universal colorimeters including CA210, CA310, CS200, CR100, CR250, X-Rite i1 Display.

2SI and SQD 4K/8K signal

4K/8K 2 Sample Interleave (2SI) ：Pixel based segmentation

4K/8K Square Division (SQD) : Quadrant based segmentation

Free Quad View

Quad View Mode supports mixed inputs & frequency rates. Each window can change to single picture mode with a shortcut button or GPI. Each window can select different color space and HDR waveform.

EOTF Curve Conversions

Konvision KUM 4K,8K and KVM-6X series supports a variety of EOTF curve conversions applicable to the broadcast industry and digital film standard. A preset of lots of HDR log, SDR logs and gamma curve selection, so as to realize the perfect combination with the camera system.

4K BOX Control

The BOX Control function can flexibly set the height and width of the marker frame on the monitor and can be adjusted up, down, left and right. Users can flexibly adjust according to the frame ratio, which brings great convenience to program production.

Darkness Check

Increasing the brightness and contrast ratio in the dark areas, Darkness Check can show more shadow details of the input signal. Darkness Check can be used for double-checking the shadow detail of the dark areas to avoid any missing information.

HDR Waveform, HDR Area Display

HDR reference white is 203 nits. The part that exceeds the reference white level (203 nits) is considered as the HDR highlight part, and the HDR highlight ratio should not exceed 20% of the entire image. HDR waveform, HDR area display can make the HDR info more intuitively displayed, which is more convenient for users.

High Dynamic Range(HDR)

Konvision KUM 4K, 8K and KVM-6X series support HDR display. Adjustable HDR modes include PQ(ST2084), HLG with Rec 2020 color gamut. It reproduces a greater dynamic range of luminosity and provides extremely high-level picture quality.

4K HDR Waveform (Alarm), Vectors

4K HDR Waveform. SDI supports Waveform, Vectorscope, Histogram. When luminance reaches or exceeds the preset value, the over exposure areas will be red marked (Waveform Alarm).

False Color

Check the exposure of the image. Blue, cyan, green, yellow, orange and red colours are displayed in turn to show the luminance or brightness values of the image from darkest to brightest, enabling an achievement of proper exposure without applying external test equipment.

Focus Assist

Focus assist aids the camera operator in obtaining the sharpest possible picture, it will mark with red colour where the sharp edges appear on the screen.

Zebra

Display the overexposed areas(too bright) of the image with zebra stripes, aids the camera operator in controlling the luminance, to avoid overexposure. This feature is very effective for proper exposure.
