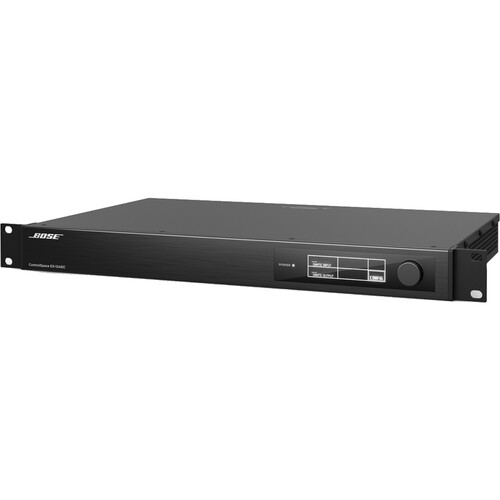

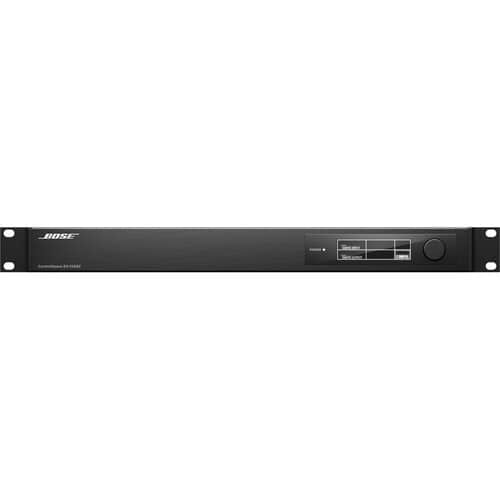

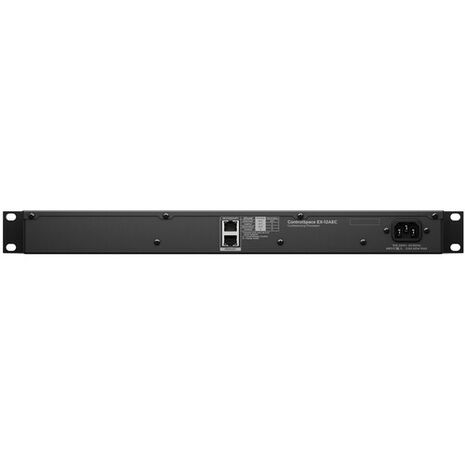

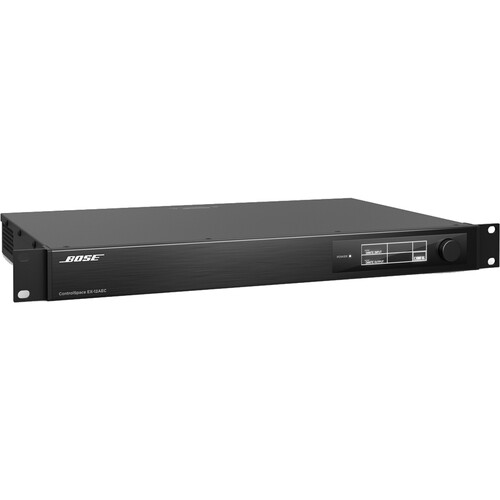

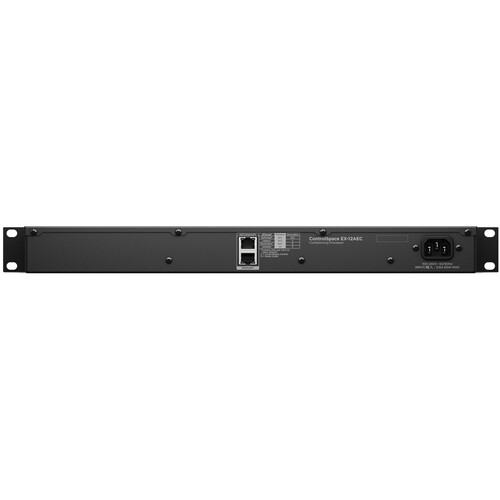

The BOSE CONTROLSPACE EX-12AEC : CONFERENCING PROCESSOR is an acoustic echo canceling processor well suited for boardrooms, large conference rooms, distance learning, multipurpose spaces, divisible conference rooms, and operation centers. The processor features an open architecture design with 12 acoustic cancelers (AEC) and 16x16 Dante connectivity.
Designed for a wide range of applications, including:
| Acoustic Echo Cancellation (AEC) | 12 channels, 480 ms tail length, 32 dB noise reduction |
| Latency (AEC) | 50 ms |
| References (AEC) | 4 |
| Audio Over IP | Dante™ 16 × 16, primary/secondary, routable to AEC |
| Digital Audio Outputs | AmpLink out (RJ-45) |
| Integrated DSP | 32-bit fixed/floating-point DSP, 456 MHz ARM Cortex-A8 |
| Maximum Calculation | 3.6 GIPS / 2.7 GFLOPS |
| Delay | 43 s |
| Indicators and Controls | 256 × 64 OLED display, rotary encoder, power/status LED |
| Mains Voltage | 85–264 VAC, 50/60 Hz |
| AC Power Consumption | 35 W typical at 40 °C (104 °F) ambient |
| Power Dissipation | 60 W (205 BTU/hr, 52 kcal/hr) |
| Cooling System | 2 variable-speed side-venting fans |
| Operating Temperature Range | 0 °C to 40 °C (32 °F to 104 °F) |
| Product Dimensions (H×W×D) | 44 mm × 483 mm × 282 mm (1.7 in × 19.0 in × 11.1 in) |
| Net Weight | 2.4 kg (5.3 lb) |
| Rack Spaces | 1RU |
| Software Applications | ControlSpace Designer 5.5 or later (Windows) |
| Computer Interface Connection | RJ-45 (Dante), through network router or switch |
