WISYCOM MTP60 : MULTI-BAND TRANSMITTER

R33 595.00
(R38 634.25 incl VAT)
List Price: R39 365.00
Short description:

Pocket transmitter specially designed for professional wireless microphone applications

01-WIR-TRA-038

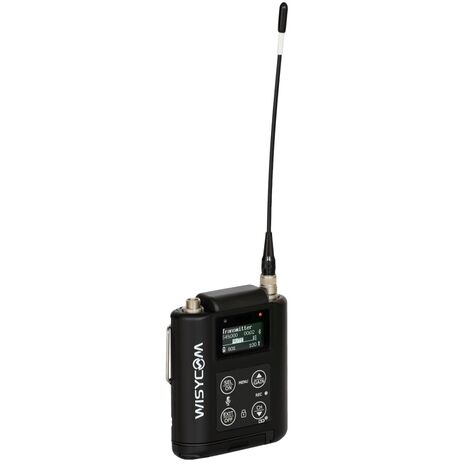

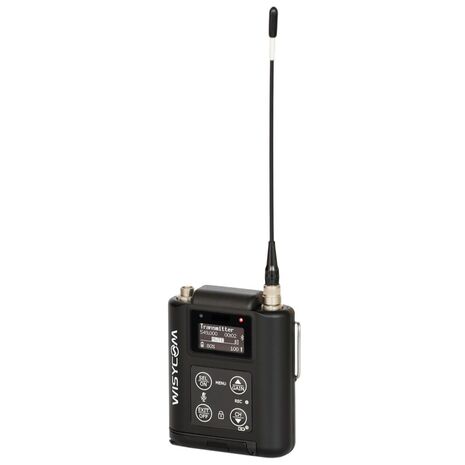

The Wisycom MTP60 is a pocket transmitter specially designed for professional wireless microphone applications.



FEATURES

  • The multi-band MTP60 currently has the widest tuning range of any wireless transmitter on the market (470 to 1075MHz)
  • Monitor & control with Bluetooth via Wisycom Manager software or mobile device apps to adjust parameters in real time
  • Dedicated hardware allows accurate real time position monitoring with advanced user interface.
  • Advanced linear technology (L20mW) eliminates intermodulation distortion for more robust signal
  • Embedded recorder to record directly on the MTP60 memory card and integrated Linear Time Code decoding
  • Enhanced robustness against self-interferences and antenna performances thru a proprietary “intermodulation cancellation” circuit
  • An integrated haptic engine that gives tactile feedback with different vibration patterns
  • FPGA based signal processing allows easy switching between wide and narrow band operation
  • Miniature design with flexible PCB (no connectors) for extended reliability
  • New ENS compander for a totally clear sound
  • Powering with 2 x AA battery (Alkaline, NiMh, Lithium) or MPRLBP lithium battery (5.55 Wh)
  • Bluetooth interface and mobile app allows full control from mobile or tablet
  • Integrated low-pass audio filter eliminates ultrasonic interference from devices such as focus pullers
  • Bluetooth 5 Long Range (Class 1, 100mW) with the MRK16 as a bridge allows remote control the MTP60 over hundreds of meters
  • Front panel buttons to quickly enter menu thanks to its multiple shortcut combinations
  • Max input level 26dBu (15.5 V clipping) to connect directly to mixers and instruments
  • 48V phantom power to use wired mic thru the PHA60 accessory



_____________________________________________________

The multi-band MTP60 currently has the widest tuning range of any wireless transmitter on the market offering a massive range of frequencies to choose from



Monitor & control with Bluetooth via Wisycom Manager software or mobile device apps to adjust parameters in real time



Dedicated hardware for accurate real time positioning and advanced user interface for accessibility assistive gestures



Advanced linear technology eliminates intermodulation distortion for more robust signal, extended range, and the ability to operate multiple transmitters in close proximity to each other without needing an intermod



Integrated low-pass audio filter eliminates ultrasonic interference from devices such as follow-focus units



Simultaneous transmit and audio recording on micro-SD



FPGA based signal processing allows easy switching between wide and narrow band operation which, together with “Linear’ mode allows intermod free frequency planning with as little as 200kHz channel spacing



An integrated haptic engine that gives tactile feedback with different vibration patterns. This can also be activated by the remote control to discreetly alert users

_____________________________________________________

WISYCOM Software

Easy configuration and monitoring thanks to the Wisycom Manager software for PC and Wisycom App for iOS or Android smartphone and tablet



Easy connection to PC with USB-C, Bluetooth or IR with suitable interface



Bluetooth interface and mobile app alows full control from mobile or tablet





Bluetooth 5 Long Range (Class 1, 100mW) with the MRK16 as a bridge allows remote control the MTP60 over hundreds of meters



Frequency ranges from 470 to 1075 Mhz, depends on the country
Switchable channels 2400 managed in 40 groups ofr 60 frequencies completely user  customizable
Switching-window  Up to 362 MHz, depending on band (see Configurations)
Frequencies   Quartz PLL  frequency synthesizer circuit (5 kHz step)
Frequency error ±2.5 ppm, in the rated temperature range
RF Power Switchable typ. 10mW/L10 W/ 20 mW/ L20 mW / 50 mW /100 mW
note: in some countries high power can be disabled, for local norm!
Antenna connector LEMO-F 1 pin
Modulation  wideband/narrowband FM, with digital audio conditioning (FPGA)
Nominal deviation ±40 kHz Wideband / ±25 kHz Narrowband
Peak deviation ±56 kHz Wideband / ±35 kHz Narrowband
Spurious emissions < 2 nW
Telemetry feature TX transmits also a digitally modulated sub-carrier, suitable for:
tone-squelch operating remote battery monitoring optional PTT (push to talk) operation
Noise Reduction system ENS - Wisycom Extended-Sound Optimized
AF bandwidth  45 Hz ÷ 17 KHz (3dB) in NarrowBand mode (NB)
45 Hz ÷ 20 KHz (3dB) in WideBand mode (WB)
Distortion < 0.3 %   (0.15 % typ.)
SND/D ratio (Analogue) typ. 115 dB (A)rms with 40 kHz deviation;   typ. 121 dB (A)rms with 56 kHz deviation  Wideband
typ. 115 dB (A)rms with 25 kHz deviation;  typ. 121 dB (A)rms with 35 kHz deviation   Narrowband
Audio input connector LEMO 3pin
Audio input level from -36 dBu (12mV RMS) to 26 dBu (15.5 V RMS) adjustable in 1 dB steps
Max input level  +26 dBu (15.5 V) at clipping, +20 dBu (7.75 V) at nominal level
Storage media micro SD memory card (.wav files - BWF)
Time code Linear time code decoding
Bit rate 16 bit / 24 bit / 32 bit
Sampling rate 48 kHz
Managing interface Bluetooth 5 long range, USB-C, IrDA
LED 2 RGB LEDs (red, green and blue) for audio, RF and battery status.
1 LED for recording, 1 LED for battery charger
Battery lifetime indication percentage or minute/second
PTT function Pin 3 of the AF connector can be setup to an external push button

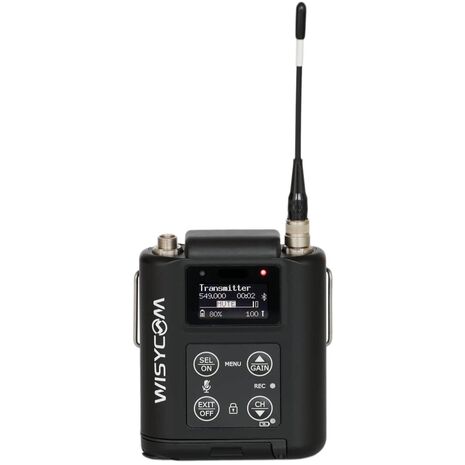

Display High contrast OLED white display (128 x 64 pixels)

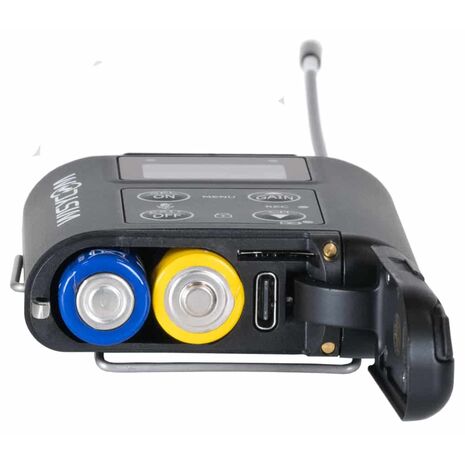

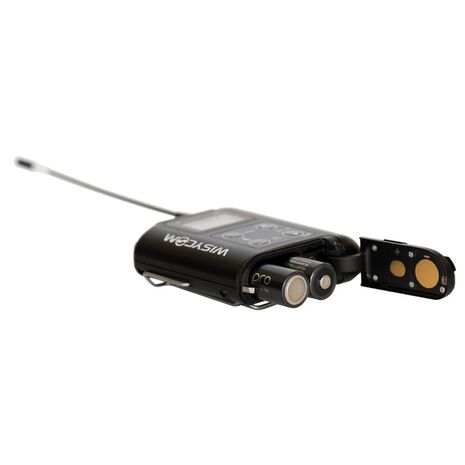

Power supply 2 x AA battery (Alkaline, NiMh or Lithium), MPRLBP lithium (5.55 Wh)
Power consumption 250mA@ 2.6V  average (display off, 100mW power)
Battery life approx. 10 hours @ 10mW with Alkaline batteries
Temperature range -10 ÷ +55 °C
Dimensions 75,7mm x 61,4mm x 19,4mm (HxWxD) without clip
Weight Approx. 140 g. without batteries (183 g. with lithium batt.)
