Transition effects

WIPE (30 patterns)/MIX/DIP/PATTERN/Still (Freeze)/MUTE/FTB

Layout

Quick call of multiple pre-made layout styles and user-defined layout styles

Layers

Supports two layers to achieve any position and size of POP/PIP

Keys

Luma Key×1/Chroma Key×1 supports separate keying settings for each layer

Mask

Separate layer mask graphics, built-in multiple mask graphics that can be customized and moved to any position at the same time

Audio

HDMI × 2 and MIC/ Line level × 1; Audio delay: 0-5s

PTZ Camera Control

VISCA IP protocol

Media Library

Local images: Up to 100 images can be imported
Capture images: Capture up to 100 images

Stream media

H.264 encoding, supporting both streaming media recording and 2-way streaming media push

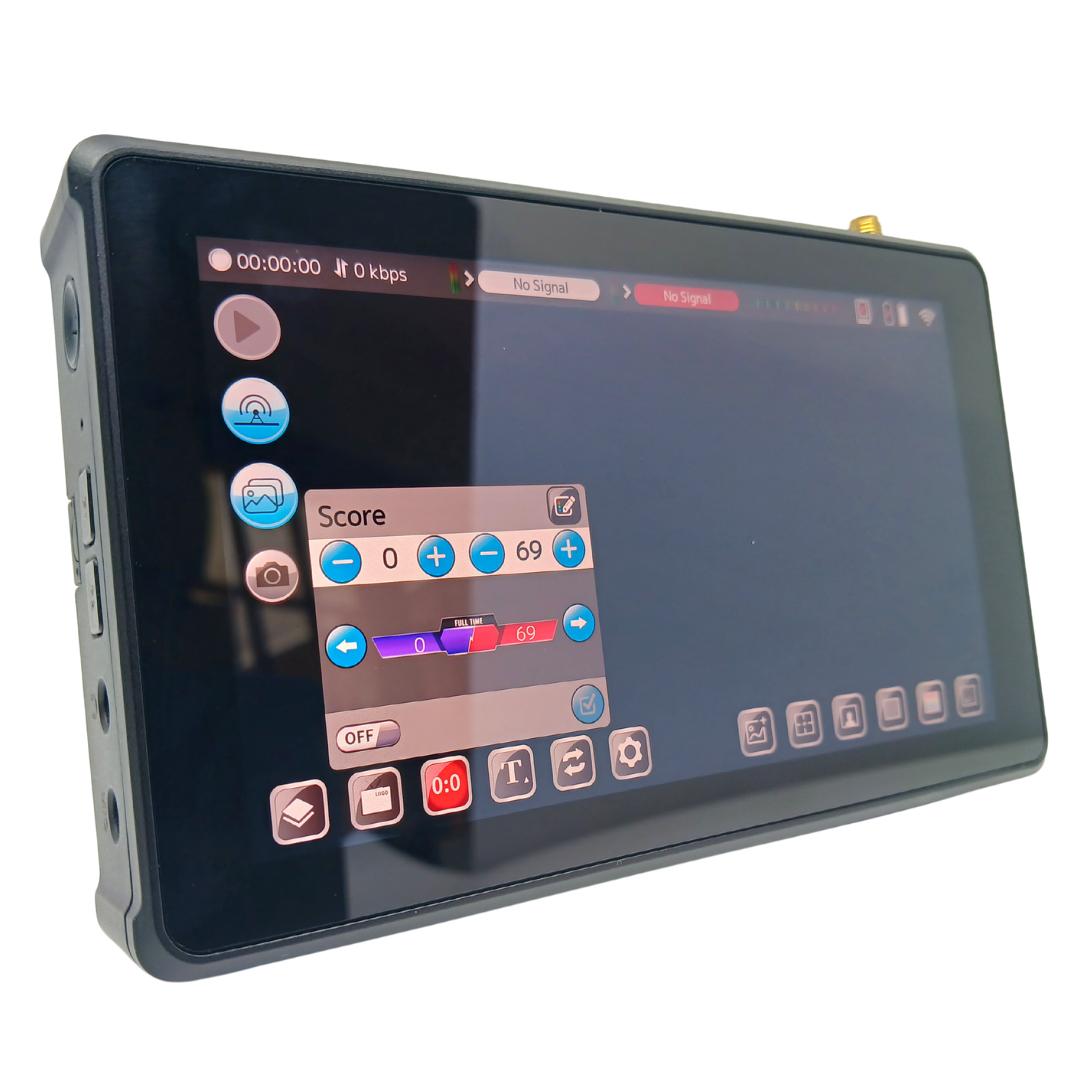

Scoreboard

Support

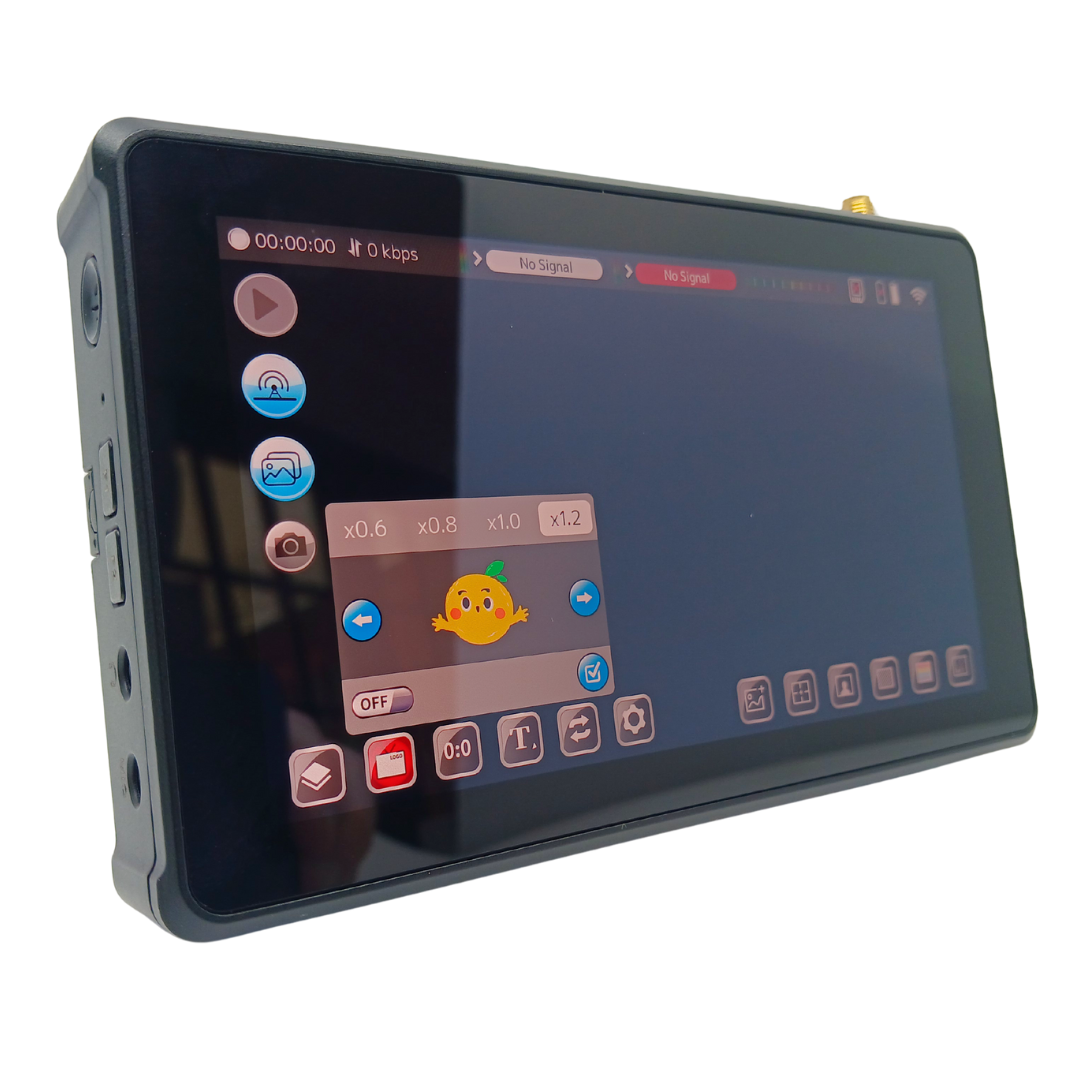

TV Logo

Any size (maximum 940*540) and position, supports alpha transparent channel (png image)

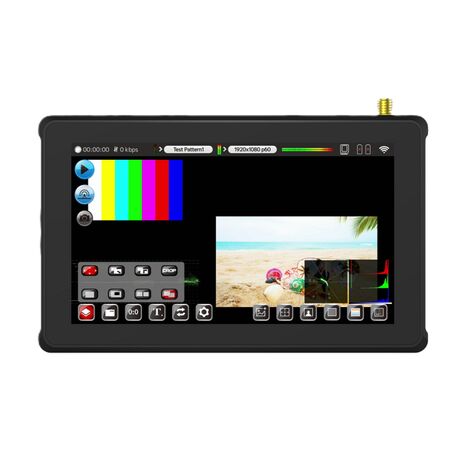

PIP

Supports advanced application scenarios such as arbitrary cropping, enlarging, and layout

Exposure

Support overexposure, underexposure, custom colour and IRE level

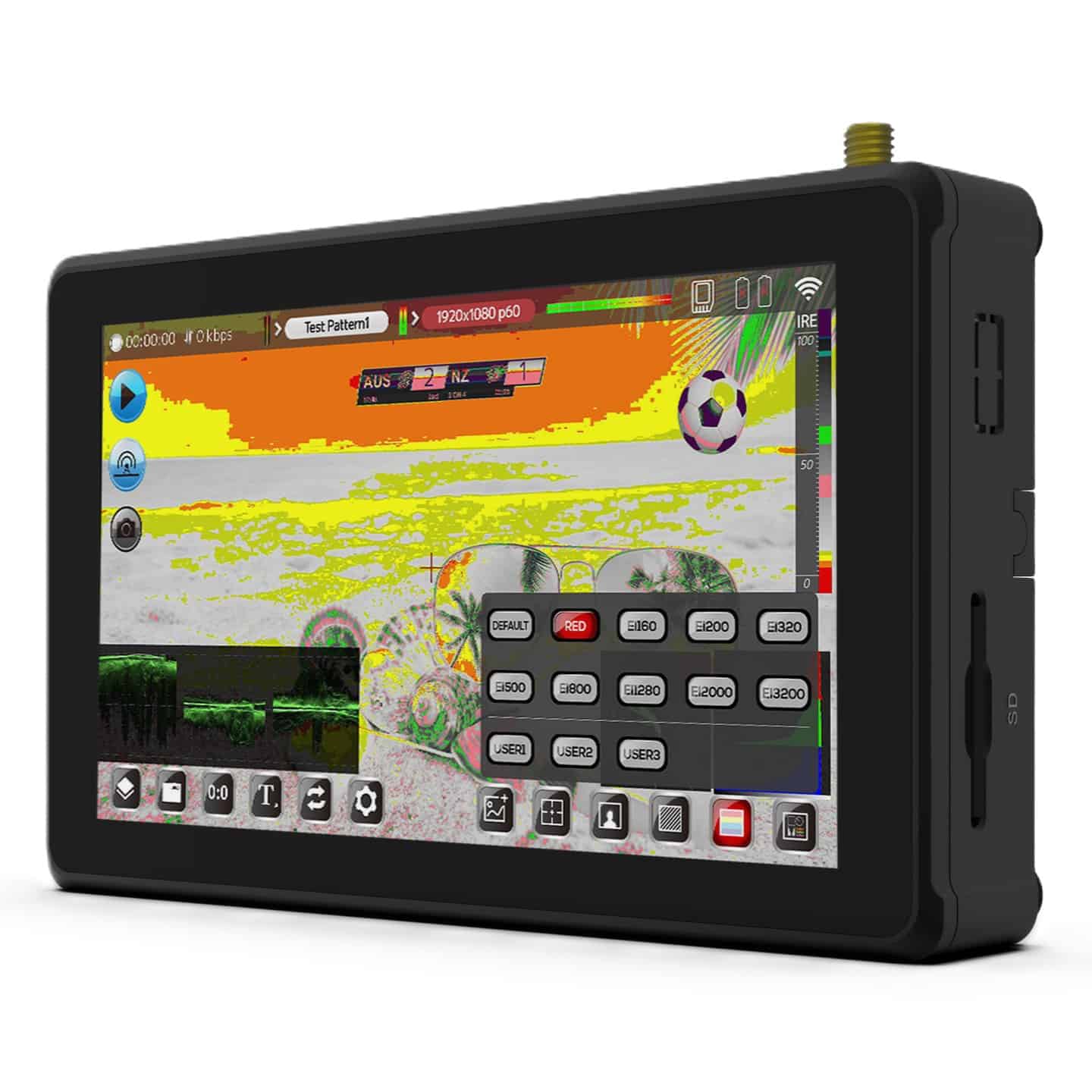

False colour

Built-in RED, ARRI false colour table, supports custom false colour

Histogram

Support

Waveform

Support full-screen waveform, RGB waveform, YCbCr waveform

Vector scope

Support

3D LUT

17*17*17 3D LUT

Touch screen

Capacitive touch

Size

5.5''

Resolution

1920 x1080

Screen Ratio

16:9

Brightness

1800 nits

Contrast

1000:1

Viewing Angle

160°/ 160°(H/V)

Colour space

RGB/YUV

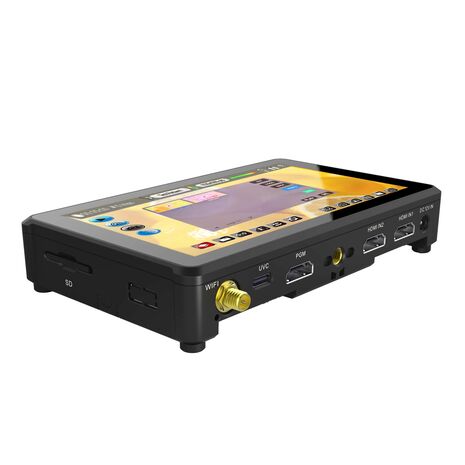

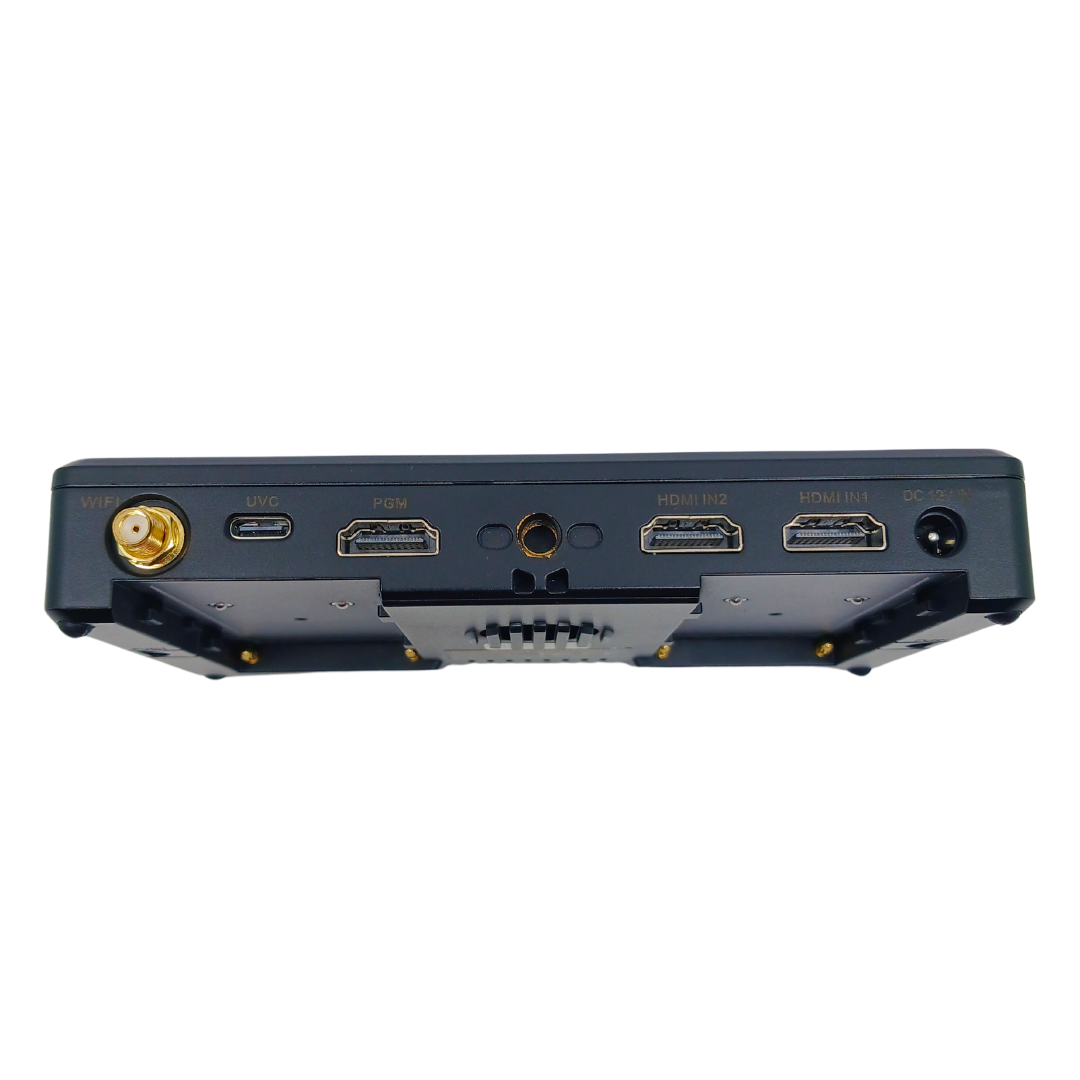

Video input

HDMI 2.0 + HDMI 1.4

Video output

HDMI(PGM) + USB-C

Input format

2160p 24/25/30/50/60,1080p 24/25/30/50/60,1080i 50/60,720p 50/60...

Output format

1080p 60/59.94/50/30/29.97125/24/23.98 1080i50/1080i60

Audio

MIC/Line(3.5mm stereo)+Line(3.5mm stereo)+ HDMI

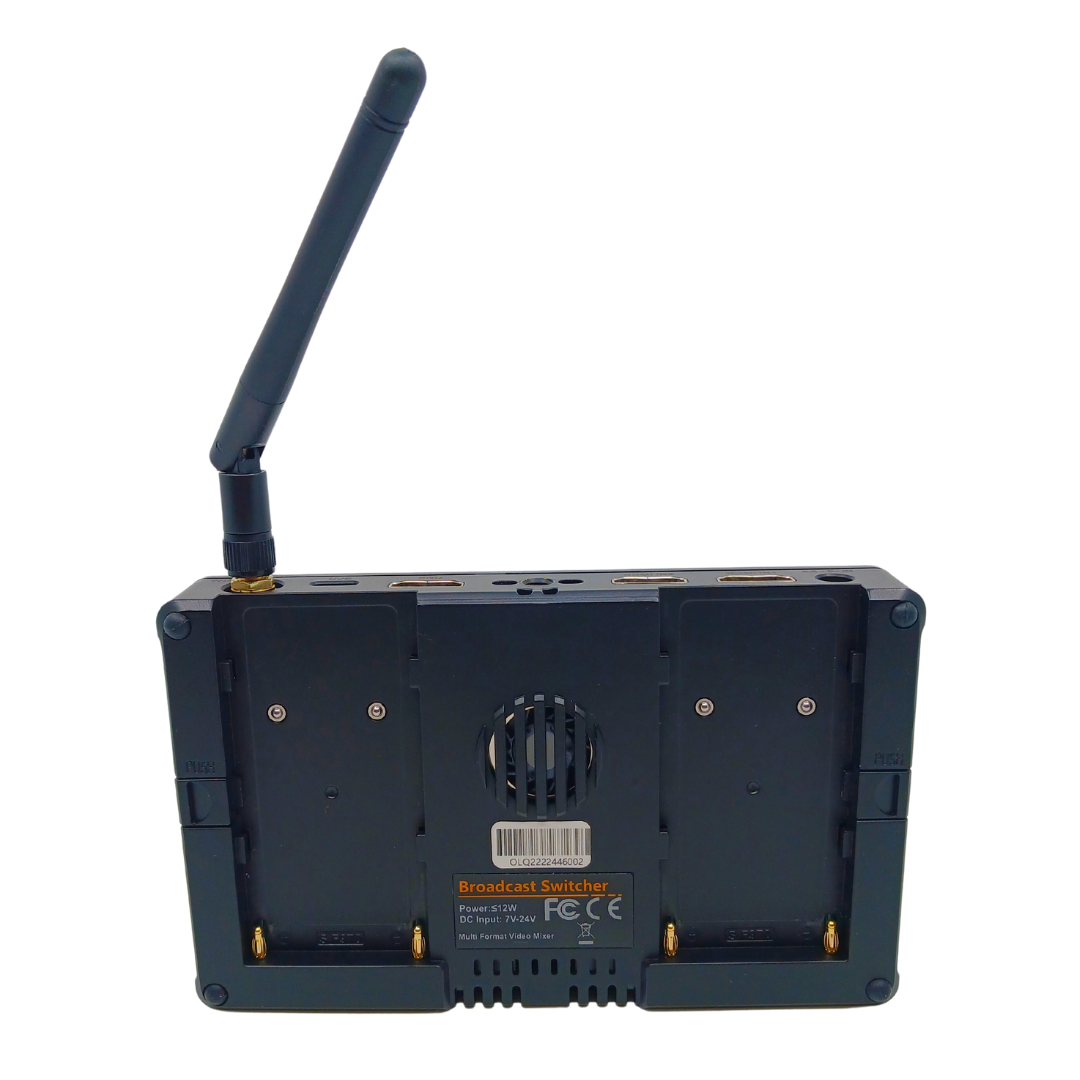

Input voltage

DC 7-24 V

Power consumption

≤12W

Working Temp.

0~40 ℃

Storage Temp

-30~70℃

Size

148mmx90mmx25mm

Weight

260g
