IKAN VXF7 V2 : 7" 4K FULL HD HDMI / 3G-SDI

R15 820.98
(R18 194.13 incl VAT)
Short description:

7" 4K Full HD HDMI / 3G-SDI On-Camera Monitor with Tally

02-MON-CAM-022

Supporting 4K and HD workflows, the VXF7 7" HDMI/SDI On-Camera Monitor V2 with Tally from ikan is a versatile on-camera monitor for any field production. The monitor features a 1920 x 1200 resolution LED LCD panel with 450 cd/m² brightness, an 800:1 contrast ratio, and a rugged aluminum housing. DCI and UHD 4K signals are supported via HDMI only, while HD or SD signals can be input through 3G-SDI and HDMI inputs. There are also HDMI and 3G-SDI loop-through outputs to send the signal onto another monitor or equipment.



Key Features

  • 7" 1920 x 1200 IPS LCD Display
  • RJ45 Tally Input with Front/Rear LEDs
  • 3G-SDI and HDMI I/O, 3.5mm Audio Output
  • 4K, HD, and SD Resolution Support
  • 450 cd/m² Brightness
  • 800:1 Contrast Ratio, 178° Viewing Angle
  • 1.33x Anamorphic De-Squeeze
  • Focus Peaking, False Color, Waveform
  • Includes Shoe Adapter and Sun Hood

_______________________________________________________



The VXF7 V2 supports tally lights via its RJ45 connector, and it has three LEDs on the front and rear that display red, green, and yellow tally lights. It can be powered via the included AC adapter, via a D-Tap power source with the included D-Tap cable, or by using a separately available L-series battery via the plate on the rear of the monitor. There are four 1/4"-20 threads around the monitor, so you can mount it in a variety of configurations. A shoe adapter is included for mounting the monitor on top of your camera, rig, or cage that features a shoe mount.

The 3.5mm audio headphone output allows you to monitor the embedded audio from your HDMI or SDI video. The monitor also features numerous image monitoring tools such as 1.33x anamorphic de-squeeze, waveform, histogram, peaking, pixel zoom, guides, markers, audio metering, and many more. A sun hood is also included with the monitor to prevent glare when using the monitor outdoors.

  • 7" 1920 x 1200 IPS LCD on-camera monitor
  • Three tally indicator LEDs on the front and rear (green, red, yellow)
  • 4K input via HDMI, 1080p input via 3G-SDI
  • HDMI and 3G-SDI loop-through output
  • L-series battery plate on the back
  • Supports real-time anamorphic de-squeeze with a squeeze of 1.33x
  • Image features such as waveform, false colour, peaking, zebra, pixel-to-pixel, zooming, clip guides, audiometer
  • Constructed with durable aluminium
  • Four 1/4"-20 threads around the body for mounting
  • A shoe adapter, AC power adapter, and D-Tap cable are included

Display

Panel Type

IPS-Type LCD

Display Size

7.0" / 17.8 cm

Aspect Ratio

16:10

Viewing Angle

Horizontal: 178° (89/89)



Vertical: 178° (89/89)

Touchscreen

No

Maximum Brightness

450 cd/m2

Contrast Ratio

800:1

Bit Depth / Colour Support

8-Bit (16.7 Million Colours)

Pixels Per Inch (ppi)

323 ppi

Image Controls

False Colour, Focus Peaking, Histogram, Image Flip, Marker Colour, Pixel Zoom, Pixel-to-Pixel Zoom, Screen Markers, Underscan, Waveform, Zebra

Wi-Fi

None

I/O

Video

1 x BNC (3G-SDI) Output



1 x HDMI Type A Output



1 x BNC (3G-SDI) Input



1 x HDMI Type A Input

Embedded Audio

HDMI/SDI

Audio

1 x 1/8" / 3.5 mm Headphone Output

Built-In Speaker

None

Other I/O

1 x Tally (RJ45) Input



1 x USB 2.0 (Mini-USB) Input

Card Slot

None

Format Support

Video Format

SDI



1080p: 60/59.94/50/30/29.97/25/24/23.98



1080PsF: 30/29.97/25/24/23.98



1080i: 60/59.94/50



720p: 60/59.94/50



480i



576i



HDMI



DCI 4K: 24



UHD 4K: 30/25/24



1080p: 60/59.94/50/30/29.97/25/24/23.98



1080PsF: 30/29.97/25/24/23.98



1080i: 60/59.94/50



720p: 60/59.94/50



576p: 50



480p: 60



576i



480i

Power

Battery Type

1 x L-Series

Power Consumption

9 W

Mounting

Mounting

4 x 1/4"-20 Female

Environmental

Operating Temperature

32 to 122°F / 0 to 50°C

General

Material of Construction

Aluminium

Dimensions

7.36 x 5.6 x 1.3" / 186.94 x 142.2 x 33 mm

Weight

1.5 lb / 680 g

Warranty Length

Limited 1-Year Warranty

Packaging Info

Package Weight

3.82 lb / 1.73 kg

Box Dimensions (LxWxH)

11.7 x 8.8 x 2.8" / 29.7 x 22.4 x 7.1 cm

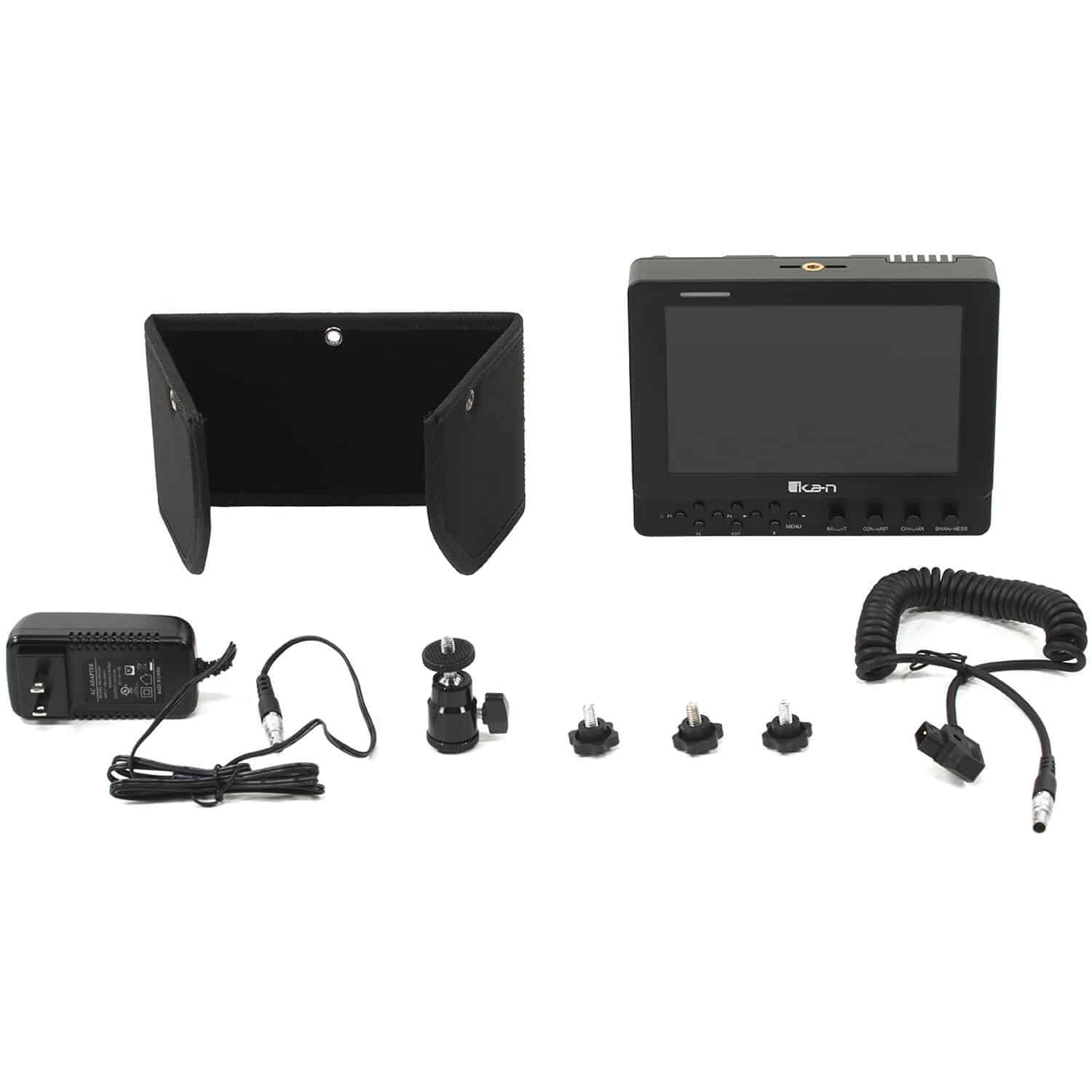

  • ikan VXF7 7" HDMI/SDI On-Camera Monitor V2 with Tally
  • AC Adapter
  • Sun Hood
  • Shoe Adapter
  • D-Tap Cable
  • Limited 1-Year Warranty
