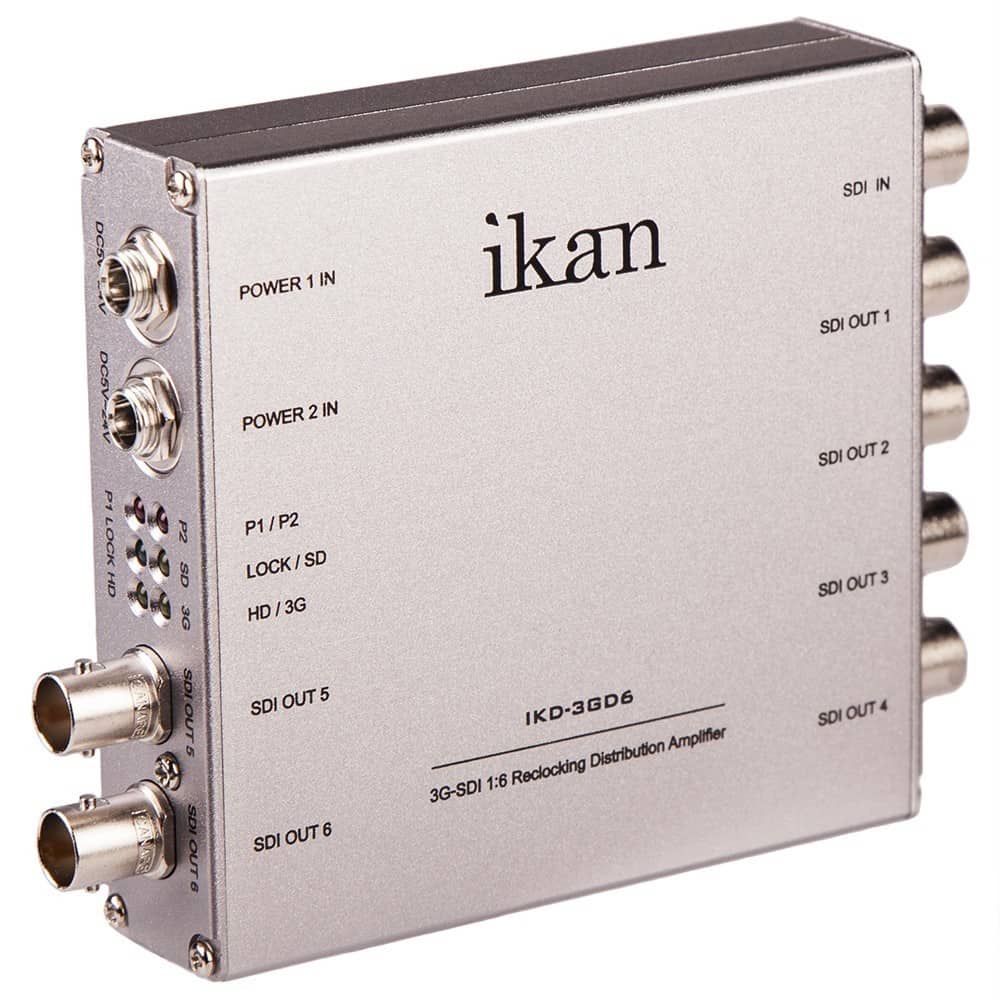

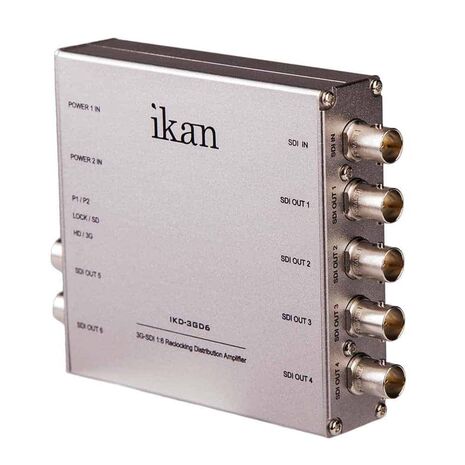

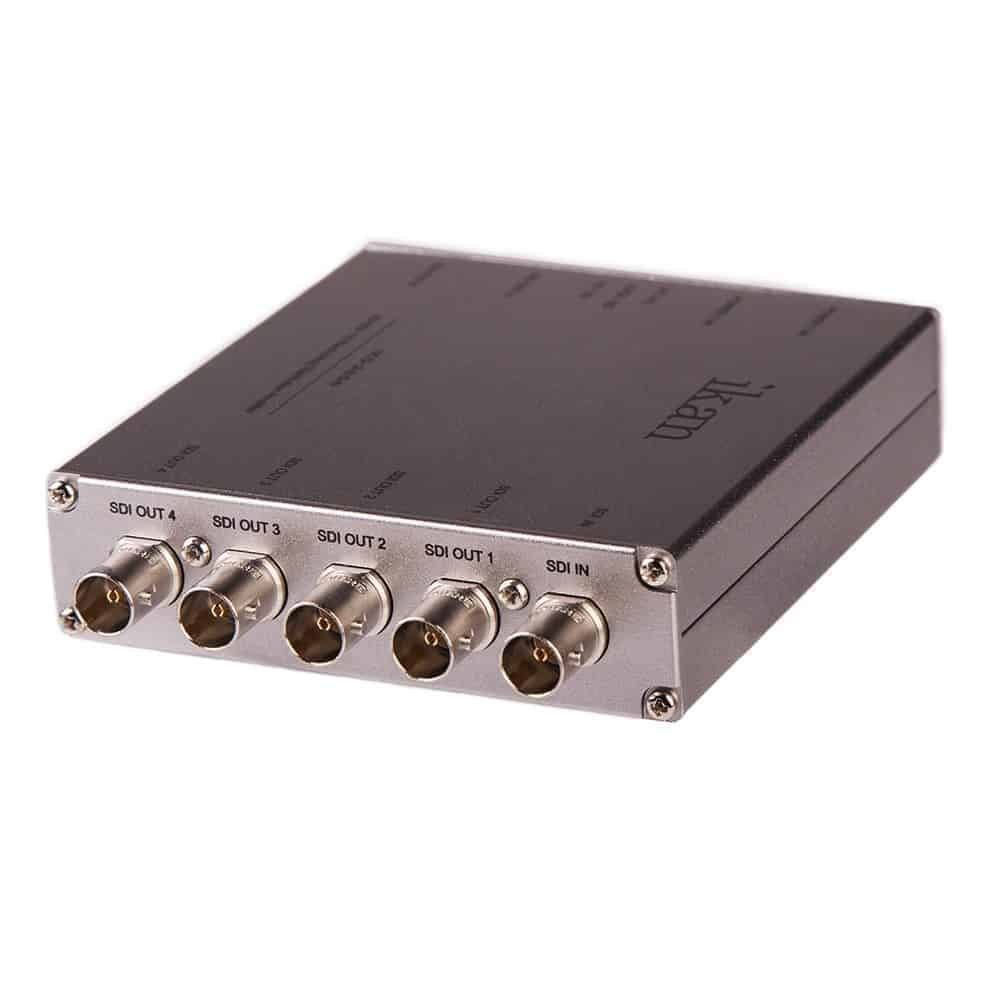

IKAN IKD-3GD6 : 1:6 3G-SDI DISTRIBUTION AMP

R7 270.56
(R8 361.14 incl VAT)
Short description:

1:6 3G-SDI Distribution Amp reclocks the input SDI signal and distributes it to each of the six SDI outputs

02-INT-SPL-014

Providing significant signal improvements over using an a simple splitter the ikan IKD-3GD6 1:6 3G-SDI Distribution Amp reclocks the input SDI signal and distributes it to each of the six SDI outputs. Reclocking the signal reduces signal degradation and allows it to travel the full distance beyond the distribution amp, as opposed to a splitter that weakens the signal.the unit features one input and six SD/HD/3G-SDI outputs that are always active.

The distribution amp only requires power and an input signal to operate, and features LED indicators for power, signal lock and signal type - SD, HD, 3G. Built out of CNC machined aluminum for a balance of durable and weight, the distribution amp includes mounting brackets so you can take it on location, or mount it in a facility. The dual locking power inputs provide you safety in case of power supply failure or kick out.

  • The IKD-3GD6's features 3G/HD/SD-SDI signal reclocking distrubtion from one input to 6 outputs.
  • With dual power support for reliable operation, and CNC machined aluminum housing with mounting brackets, the IKD-3GD6 1:6 3G-SDI distribution amp is at home on location or in a production/postproduction facility.
  • The power inputs feature a threaded connector to prevent accidental kick outs and power failure.
  • Indication LEDs provide confirmation of power and signal.

PRODUCT HIGHLIGHTS

  • Signal Recocking Distribution
  • All Outputs Always Active
  • LED Indicators
  • CNC Machined Aluminum Construction
  • Mounting Brackets
  • Dual Locking Power Inputs
Input SD/HD/3G-SDI: 1 x BNC
Output SD/HD/3G-SDI: 6 x BNC
Data Rate 19.4Mb/s to 2.97Gb/s
Supported Standards SMPTE
259M
292M
424M
425M

DVB
ASI
Power 5 to 24 VDC
Dimensions Housing Only: 3.9 x 3.7 x 1" / 100 x 95 x 25 mm
Including Connector: 4.6 x 3.7 x 1" / 118 x 95 x 25 mm
Weight 0.53 lb / 240 g
  • ikan IKD-3GD6 1:6 3G-SDI Distribution Amp
  • AC Adapter
  • 2 x Mounting Brackets
  • Limited 1-Year Warranty
